Optimus mini three overview

Exterior   Overview   Downloads   Developers   Press clippings   In use   Package   Project


Optimus mini three is an auxiliary keyboard-informer with OLED technology. The three keys can display static or animated images. Optimus mini three keyboard can be used as a toolbar, a remote control, an indicator, or an RSS reader.


Functionality
Optimus mini three keys display information associated or independent of the running program. For example, you can be watching a film on your computer, while the keyboard displays weather forecast, exchange rates or mail notifications.

Optimus mini three works in sync with the regular keyboard and is so configured that its current layout changes as you press the modifier keys (Ctrl, Shift, Alt, and their combinations).


Connection
To get Optimus mini three up and running:

1. Install Optimus Configurator software on your computer.

2. Connect the Optimus mini three to a free USB port.

That’s it.

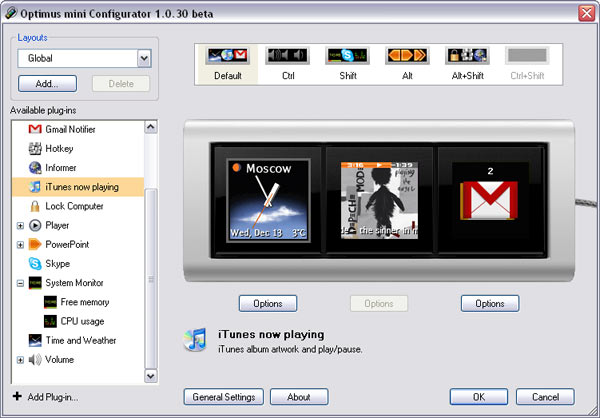

Optimus Configurator for Windows

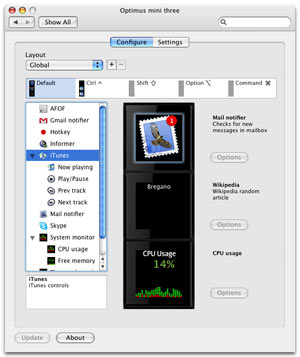

Optimus Configurator for Mac OS X

Layouts
There are layouts tied to programs and layouts that don’t depend on which program is running.

Optimus Configurator allows adding new layouts or using standard ones.

Optimus news

Enter your e-mail address to receive news about Optimus keyboards. You’ll get no spam.


Technical specs

Size of the keyboard

width

116 mm

depth

51.8 mm

height

18 mm

key

32×32 mm


Specs of each of the three screens

technology

OLED

viewable area

20×20 mm

resolution

96×96 pixels

frame rate

3 frames per second

colors

65 536

viewing angle

160°

Compatibility

Connection

USB 1.0

Control

Optimus Configurator software

OS

Windows, Mac OS X


System requirements
Windows 98, Windows 2000, Windows XP 32-bit and 64-bit editions, Windows Vista 32-bit editions, Windows 7 32-bit editions, or Mac OS X 10.4.8 or higher, with  USB 1.0.

At least 20 MB of free hard disk space.

At least 23 MB of RAM.




Learn more about OLED displays at www.oled-info.com
