  • The making of the Ctrl+O opener

    Overview   Package   Process   Hi Res

    Opening up the process.

    ctrl prom process idea

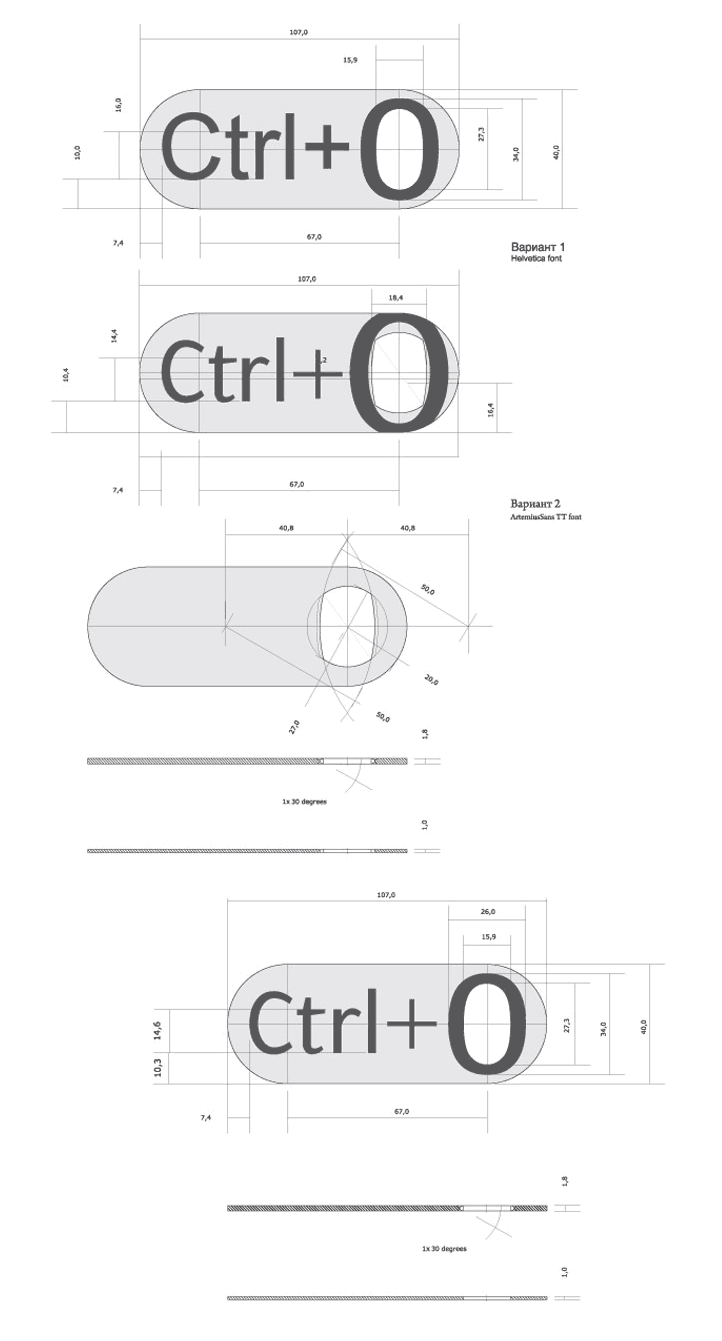

    Getting control over proportions, typefaces, scale.

    ctrl prom process 01
    ctrl prom process 02

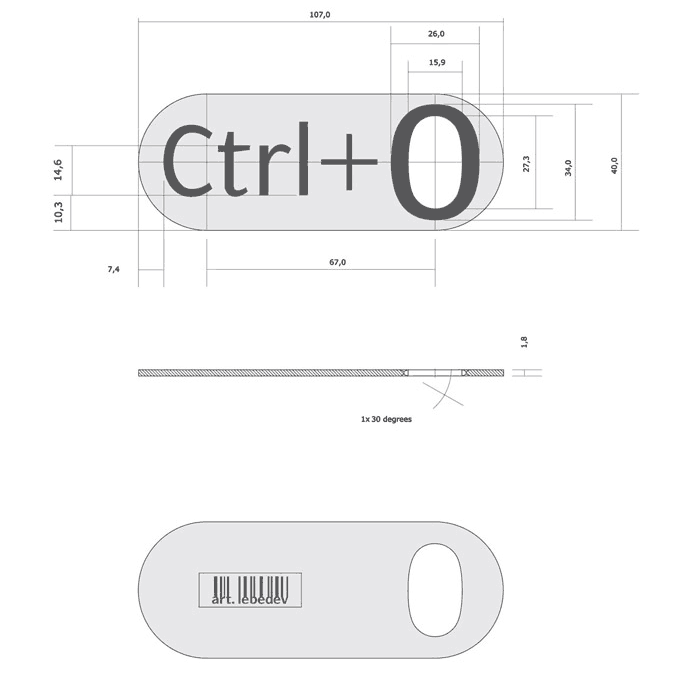

    Making a blueprint of the graphics placement.

    ctrl prom process 03

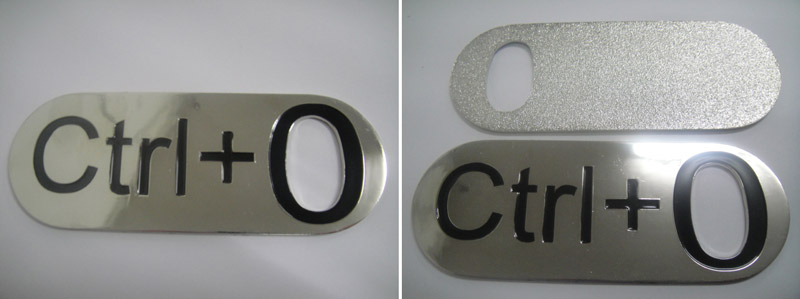

    Checking out metal finishing options.

    ctrl prom process 04

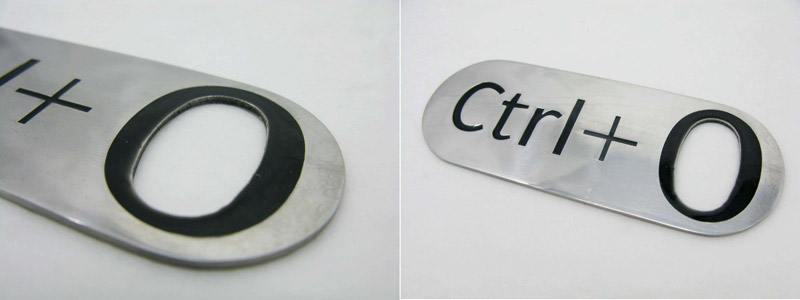

    The color coat is not consistent, need to run another test.

    ctrl prom process 05

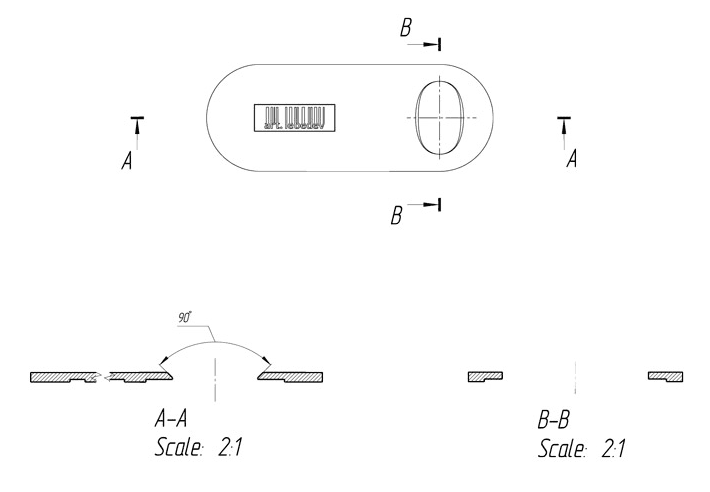

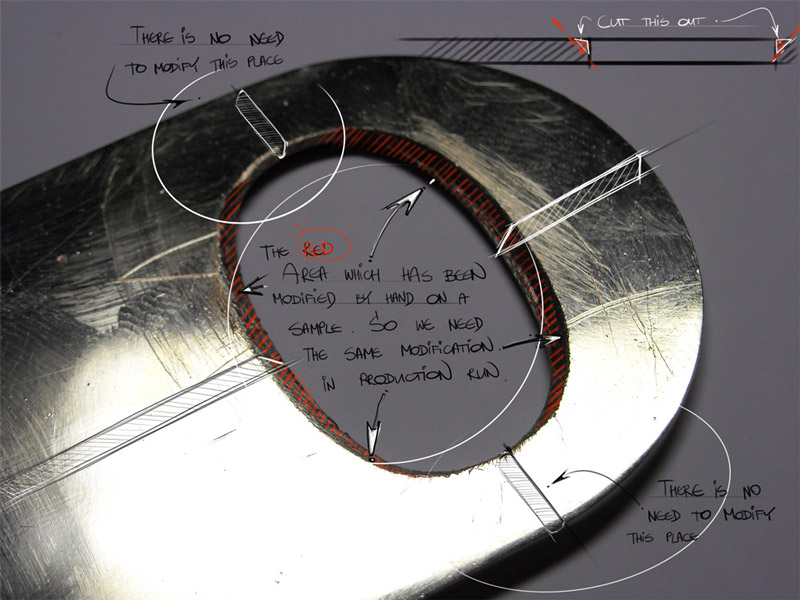

    More tests later and the opening gets modification to work more smoothly.

    ctrl prom process 06
    ctrl prom process 07

    Another sample with defective color application.

    ctrl prom process 08

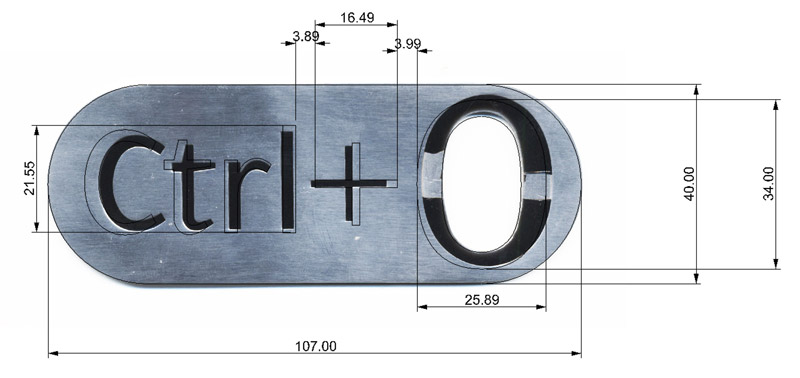

    It also does not match the drawing.

    ctrl prom process 09

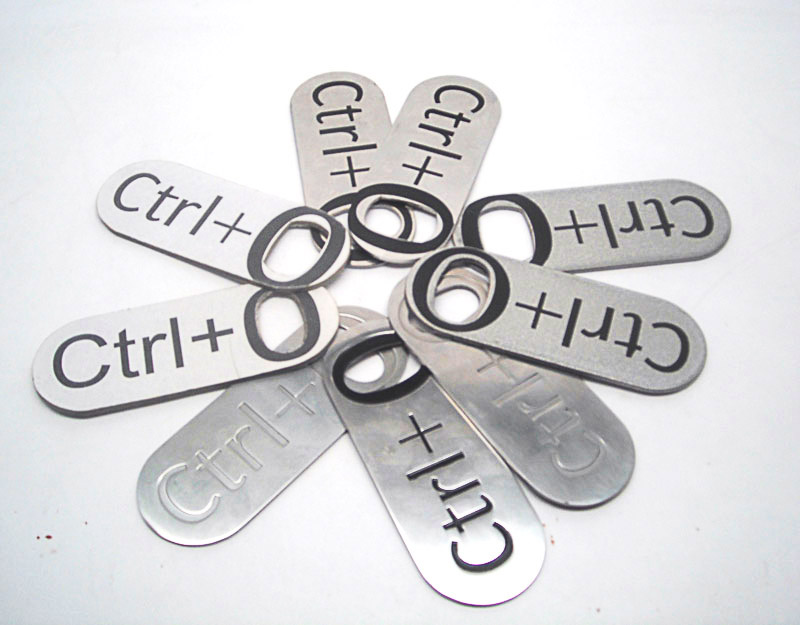

    Collecting all the prototypes and test results to choose the right way to go.

    ctrl prom process 09a

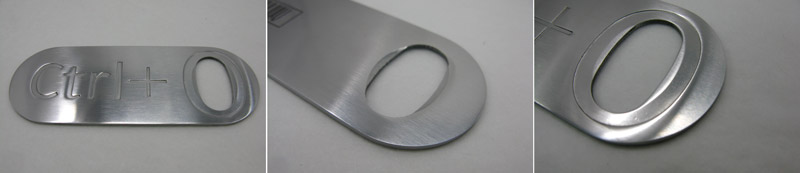

    One of the production samples.

    ctrl prom process 09b

    Creating the packaging.

    First sketches.

    ctrl o package process 01

    Art director: Nice concepts. Let's get the one with a window as a starting point. See the attachment.

    ctrl o package process 02

    Art director: You can paint the caps in different colors and use drinks for file names: coke, beer, milk, lemonade, sparkling water, and punch.

    By the way, we need all this in English.

    ctrl o package process 03

    Designer: To support the hot keys idea we can use a pop-up hints.

    Art director: The colors scream “made in China.” Let's stick to the black version and put all caps against a carbon backdrop.

    The opener itself is going to be physically placed against this backing, so the proportions are crucial.

    ctrl o package process 04

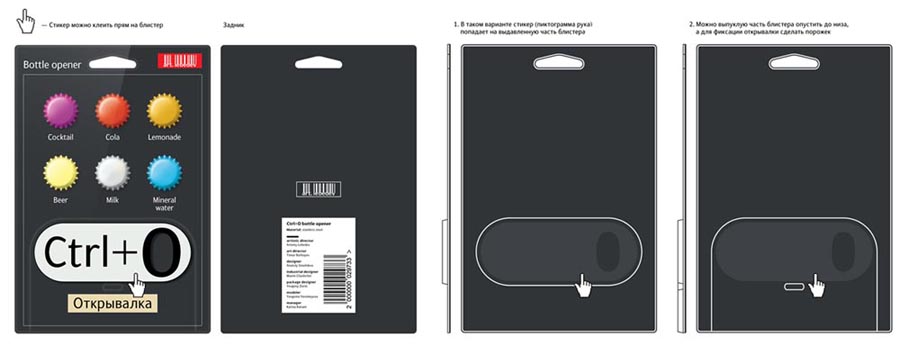

    Designer: We can die-cut an opening for the product on the front side of its packaging.

    Art director: We could. But so far it does not resemble a packaging.

    ctrl o package process 05

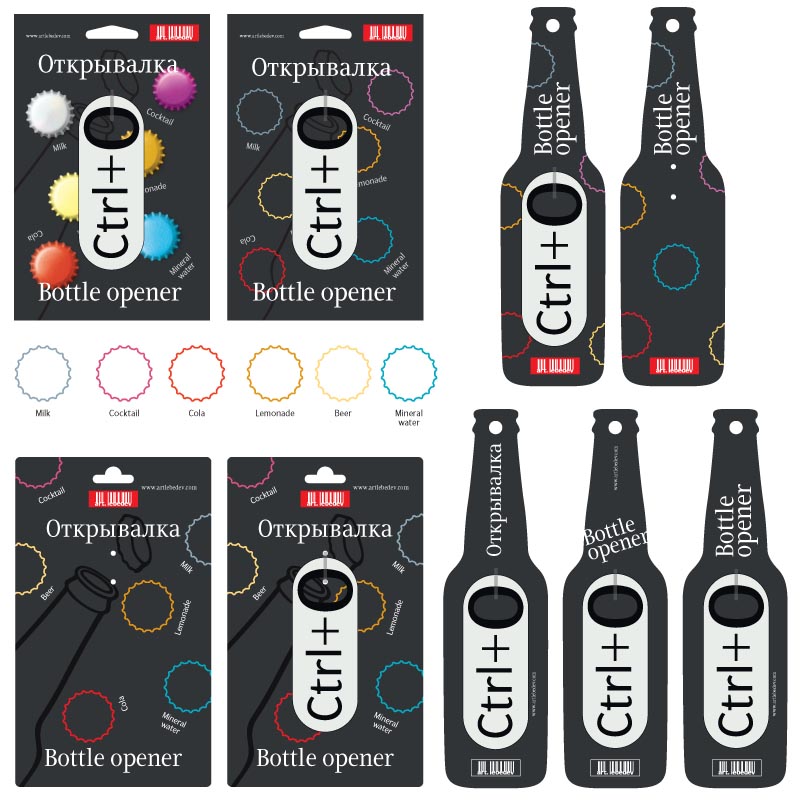

    Designer: The backing is made of dense vulcanized fiber, something like a touch cover. Fix the opener inside with a black or clear string. The outline of a bottle with a launched cap can be varnished.

    ctrl o package process 06

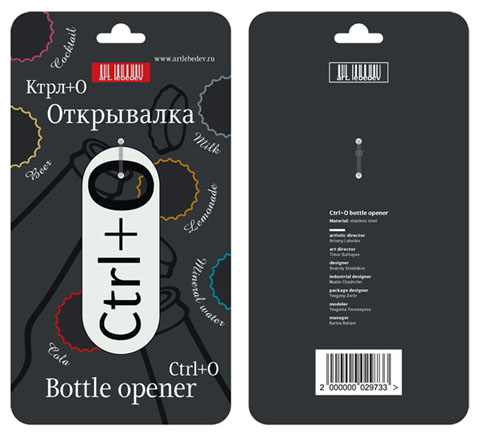

    Designer: I've changed the caps to actual size of 32 mm (1.25″). And I suggest to leave them outlined like that to avoid competition with the product itself.

    Art director: I'm not sure it's possible to varnish the precise contour of a bottle, so it's better to leave it alone, without any overlapping.

    The word “bottle” is not very legible because of the cap shape on top. We need our barcode logo outlined on top of the regular barcode on the back. I do not like the logo and URL placement. I'd also round the corners. Everything else is good.

    ctrl o package process 07

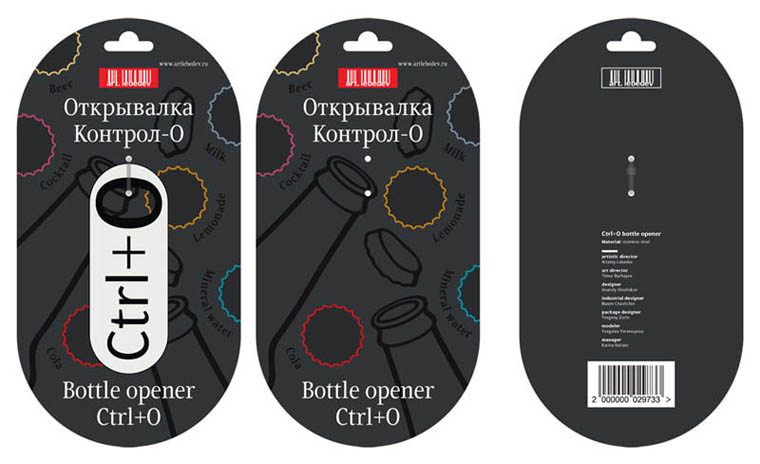

    Art director: The typeface does not really work. Pick a different one and try it in varnish. The title should be spelled out “Control-O” and should be set in the right order “Opener Control-O.” Same thing for the English version.

    ctrl o package process 08

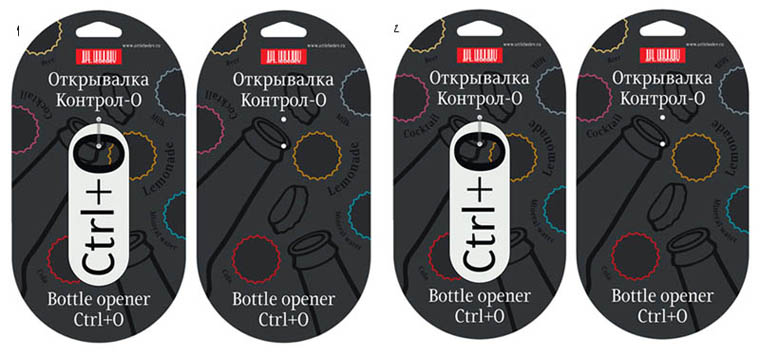

    Art director: Words “cocktail” and “lemonade” clash because of the same angle, not good.

    ctrl o package process 09

    Art director: 1 is better. I thought, we do not communicate the main point. Put some light color under the O-opening to make it pronounced.

    ctrl o package process 10

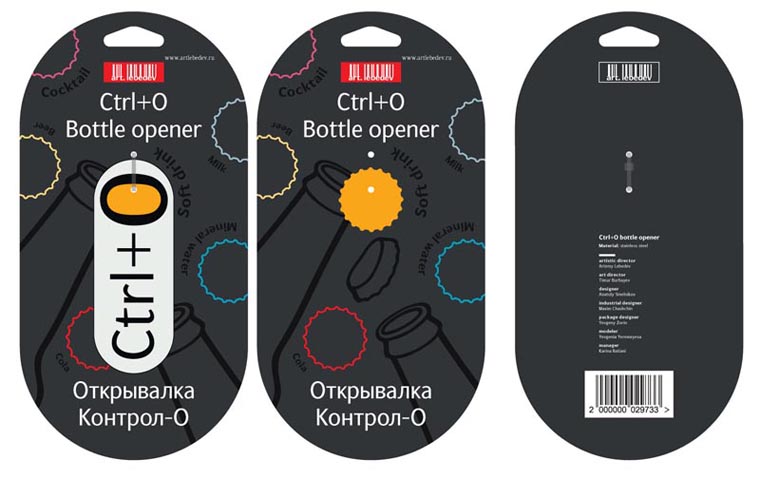

    Art director: Let's take the second one and try sans serif for the front. Trade “Lemonade” for a “Soft drink.” Move text in Russian to the bottom, for the one in English switch the lines and move it to the top.

    ctrl o package process 11

    Designer: Sans serif for the whole facade or just caps captions?

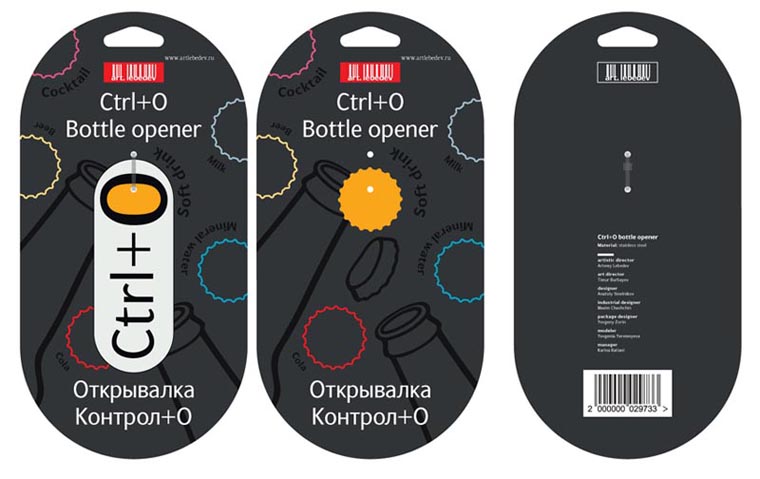

    Art director: For everything. Last correction for the text in Russian is a plus sign in «Контрол+О».

    ctrl o package process 12

    Art director: Off to printing it goes.

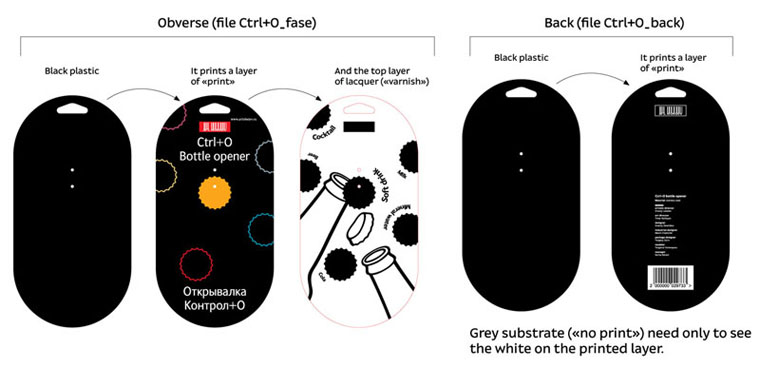

    Printing layer by layer chart for the production staff.

    ctrl o package process 13

    Sample of the varnish printing and the base material. We don't like it. Making the varnished graphics bleed.

    ctrl prom process 10

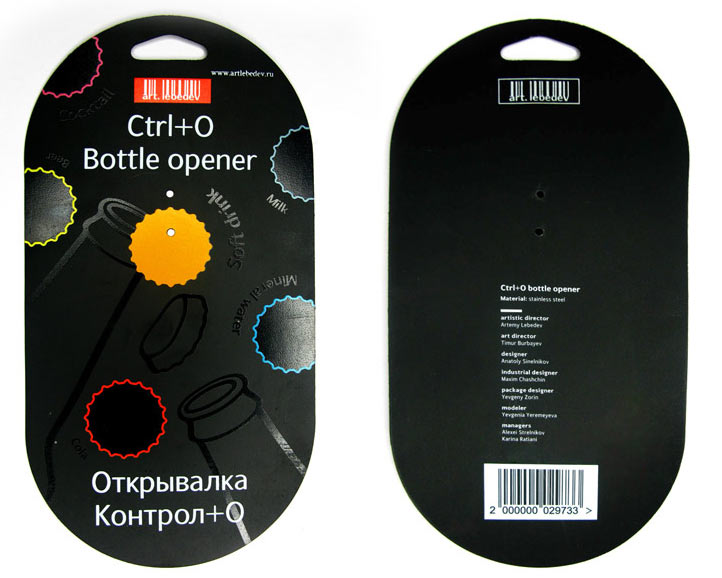

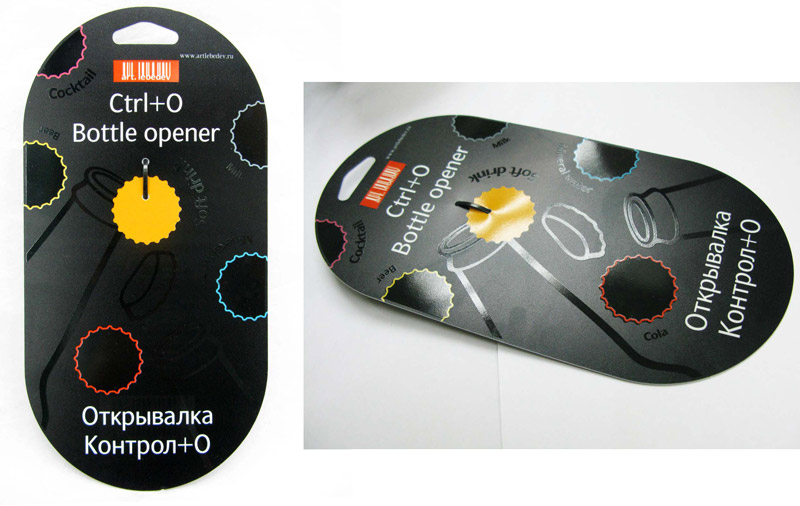

    Now it's much better and all the bottlenecks successfully avoided.

    ctrl prom process 11
