The making of Flugerus weather vane

Overview• ProcessHi Res

We get the idea to make a weather vane with the word Wind written on it.

flugerus process 00

Looking at pictures, studying current designs.

flugerus process 01

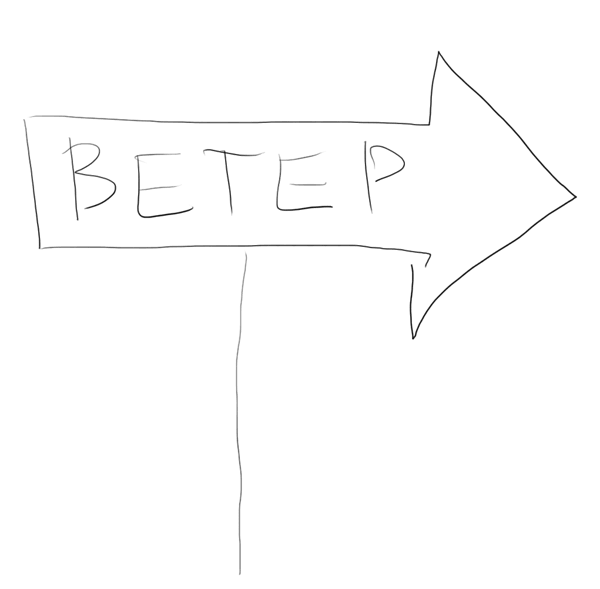

Making sketches of both the vane and the word. Trying to find the best position of the arrow which would ensure the word is easily readable.

flugerus process 02

Choosing one of the designs and trying to marry it with the arrow. Decorating the stick.

flugerus process 03

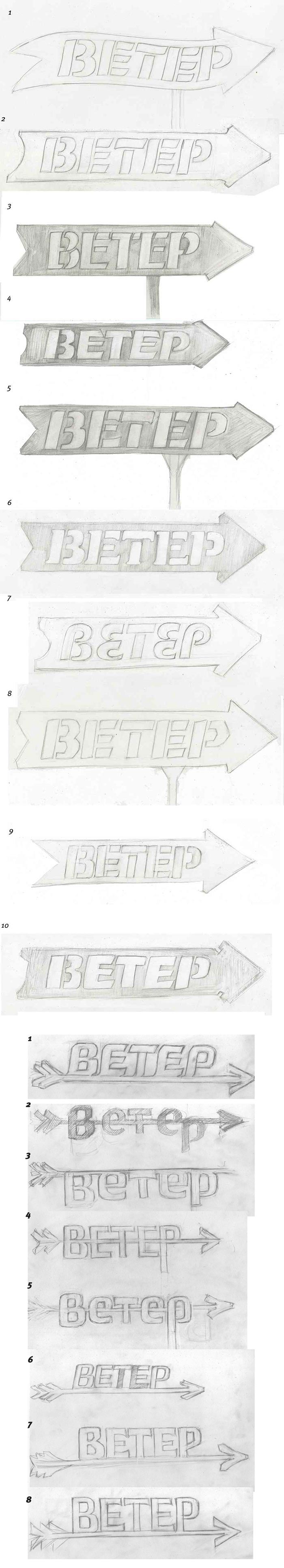

Art director: Let’s put the word inside the arrow. Also, the letters should be simpler.

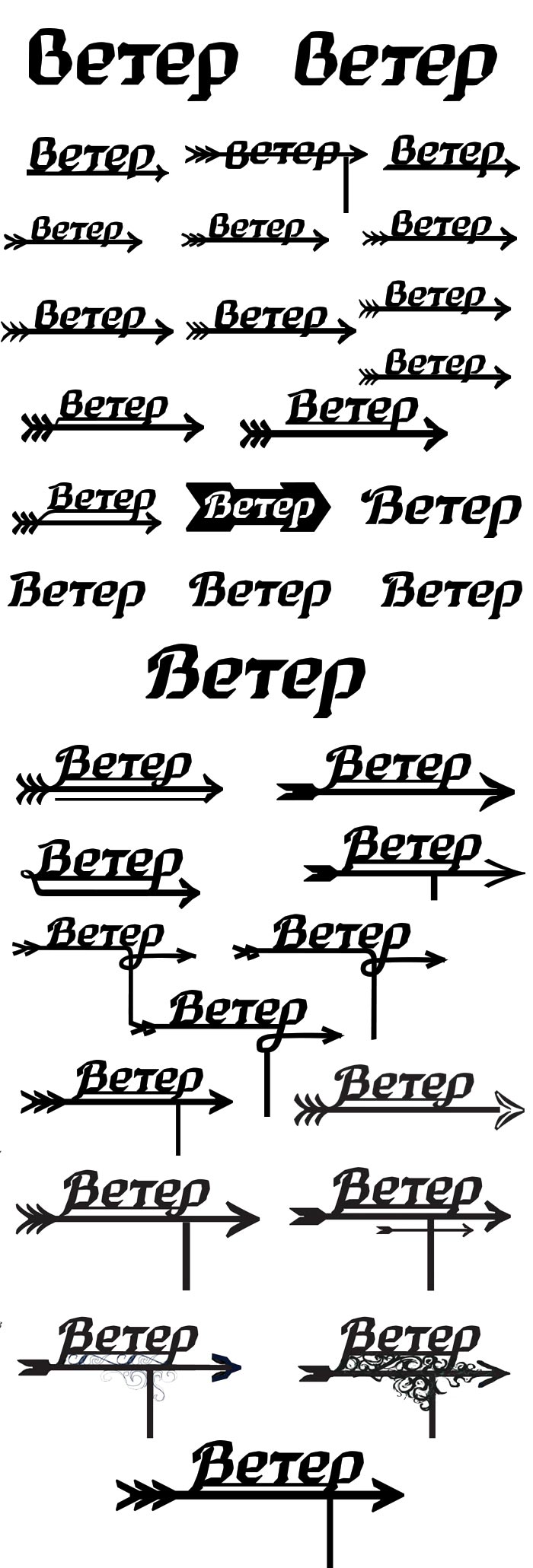

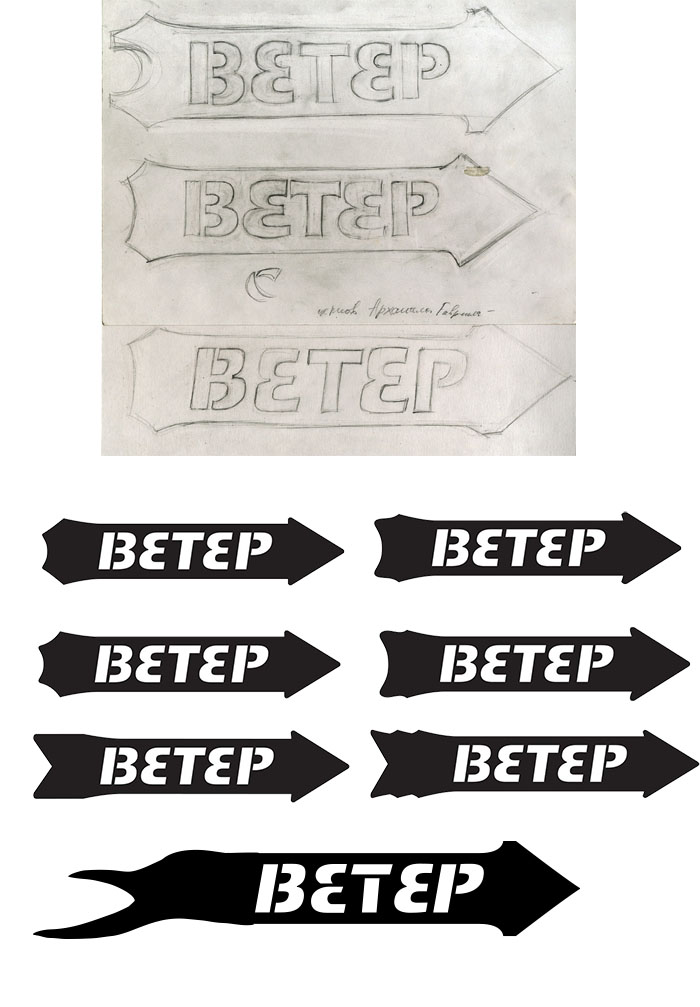

Drawing the letters and searching for the shape of the vane.

flugerus process 04

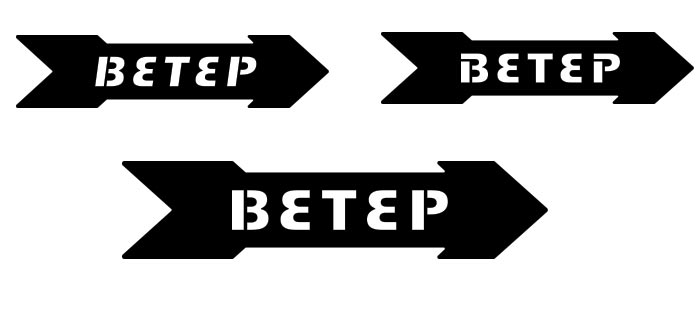

The art director suggests to go with a simple arrow.

flugerus process 05

Still not what we want. Drawing new shapes, trying to use Gothic motifs.

flugerus process 06

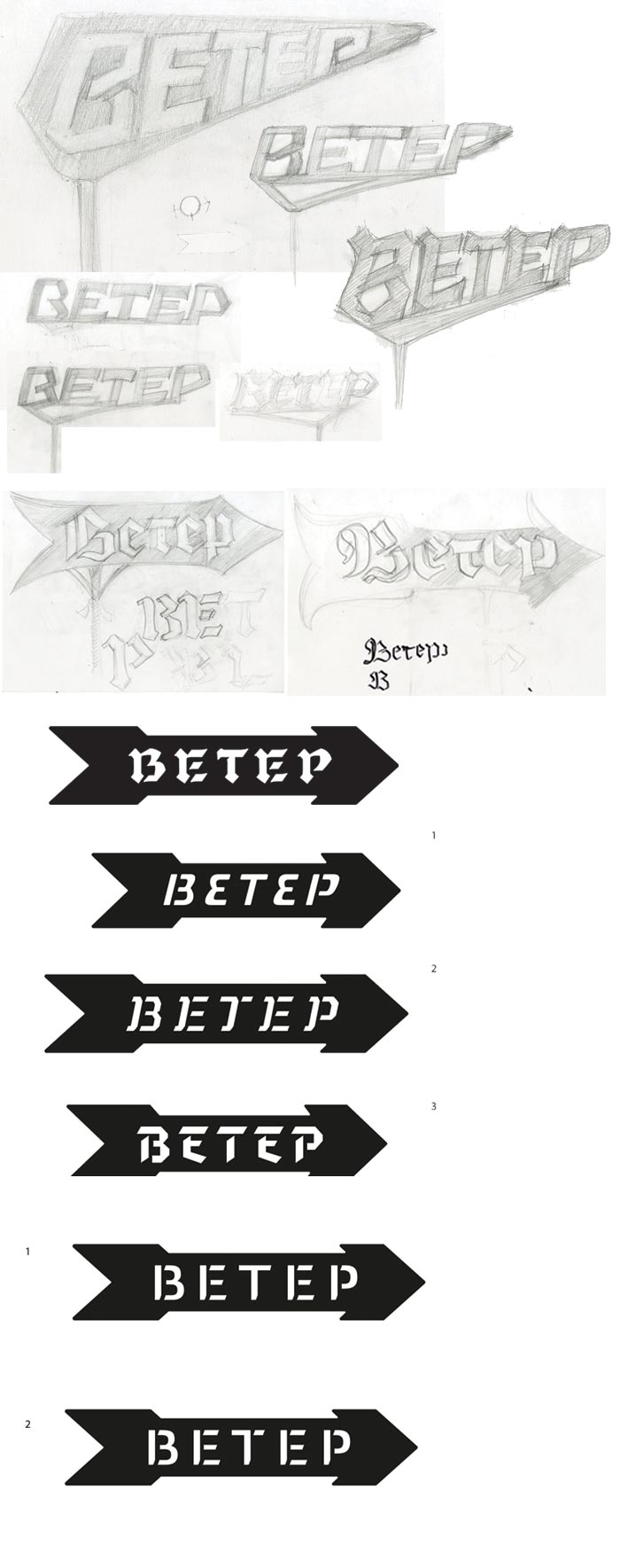

Approving one of the designs. The art director asks to make the arrow more arrowy. Making the pointy end simpler and adding letters for cardinal directions.

flugerus process 07

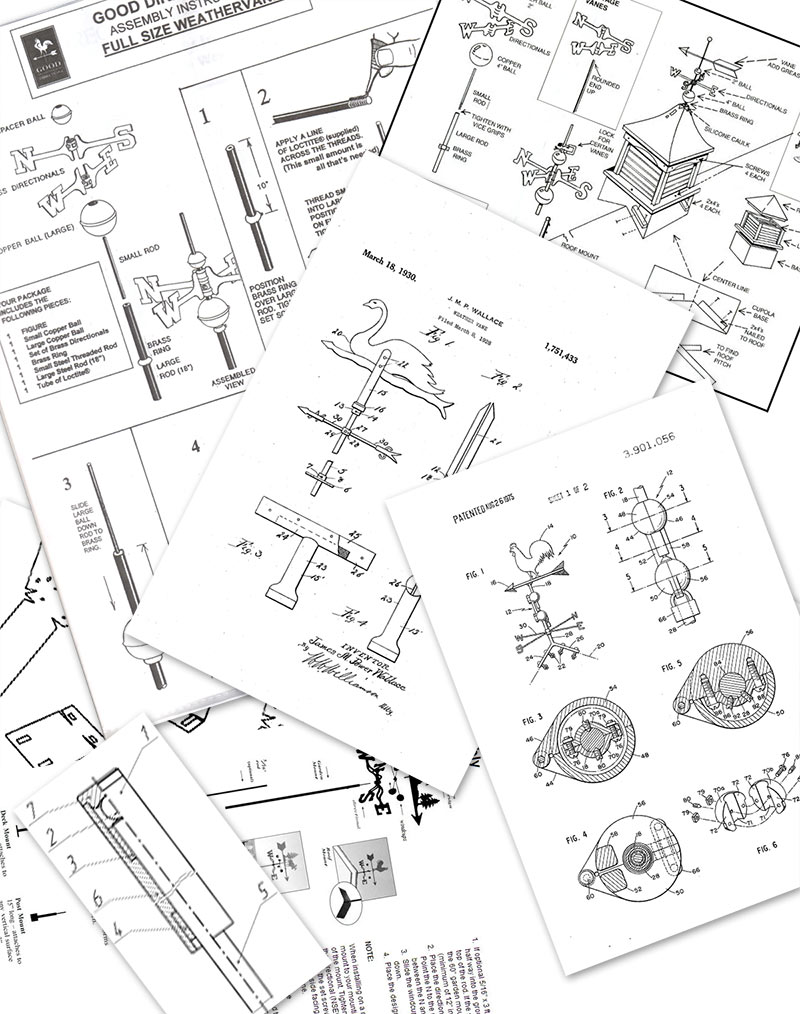

Studying the structure of weather vanes, types of fixtures and movable parts.

flugerus process 08

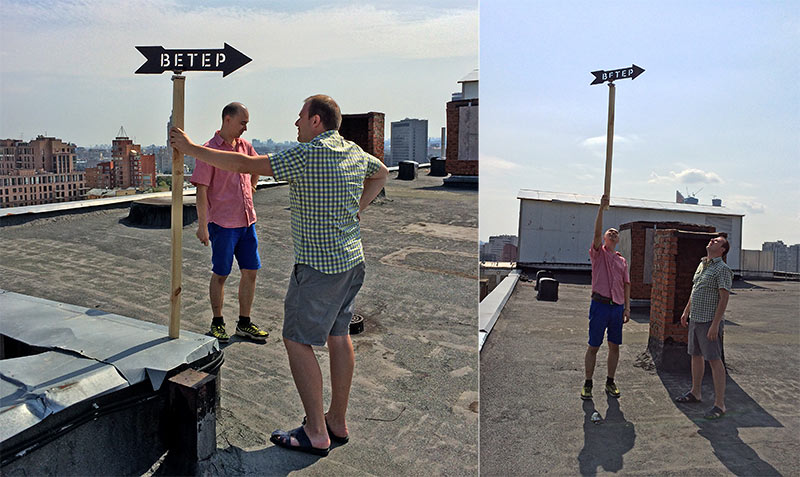

Creating a prototype and checking its operation by attaching it to a movable axis.

flugerus process 09

Estimating the size and shape of the cardinal directions letters.

flugerus process 10

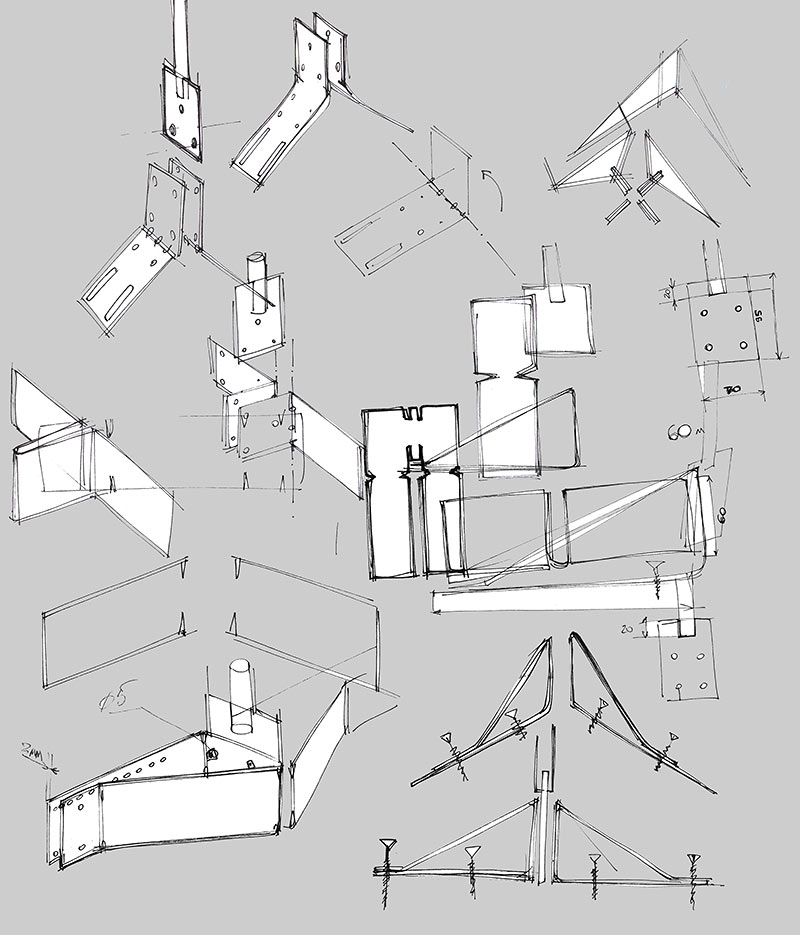

Coming up with various fixture designs.

flugerus process 11

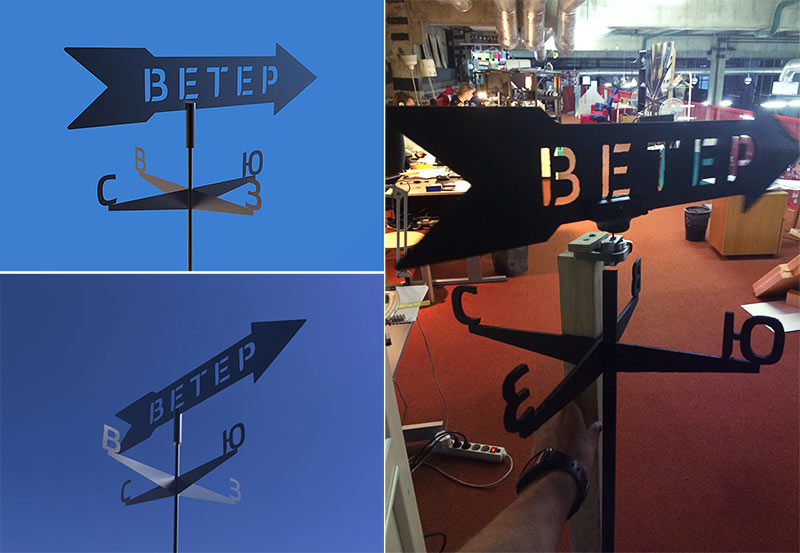

Checking the readability of the letters in real life.

flugerus process 12

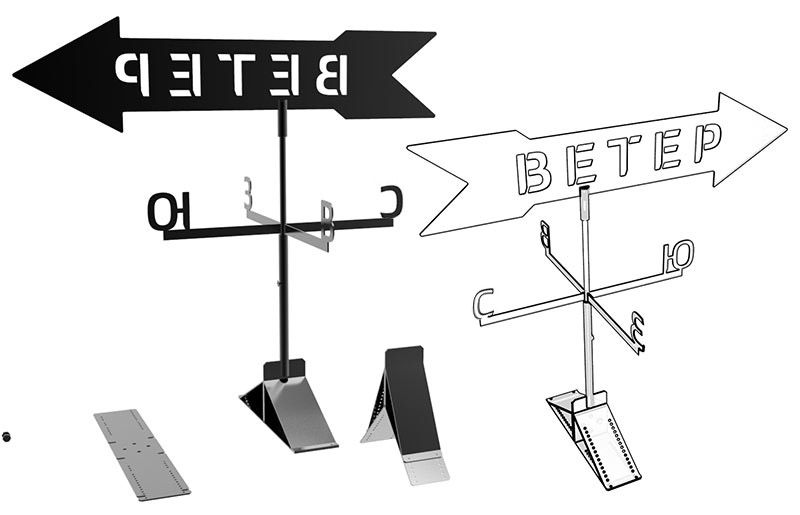

Creating a 3D model.

flugerus process 13
