    Task:
    to create navigation for 96 stations.

    A Unified System of City Navigation has been in development in Moscow since 2013. The project comprises several areas: the Metro, ground transport, pedestrian streets and transfer junctions. One of the stages of the project is the installation of navigation in Metro passageways. Based on the concept developed by the Moscow Department for Transport, mock-ups of navigation elements for Metro stations and a guide on designing maps and preparing texts were created at the studio.

    Exit numbers

    Underground passageways are connected with exits from Metro stations. Their layout is complex, some of the stations have up to ten exits. To make it easier for passengers to find their way, the exits are now numbered.

    Exit numbering was suggested by City ID as part of the Unified System of City Navigation. Similar exit numbering can be seen in Tokyo and Hong Kong.

    Exits at Konkovo station
    The first stage of implementation covered only underground passageways and station entrances

    Information signs

    When we started adding information to navigation signs, we ran into a problem. In the ideal world each navigation sign is big in size, beautifully illuminated, located in the most visible area, contains a single word and has elves fluttering around.

    The reality is a bit different. We have a passageway two inches high and one inch wide and we need to place a sign there in such a way so that passengers don’t hit it with their head. And very close are eight churches, forty six historical monuments, fourteen shopping centers, five libraries, three parks and one small but very proud country. Get to work!

    This is where information planning begins.

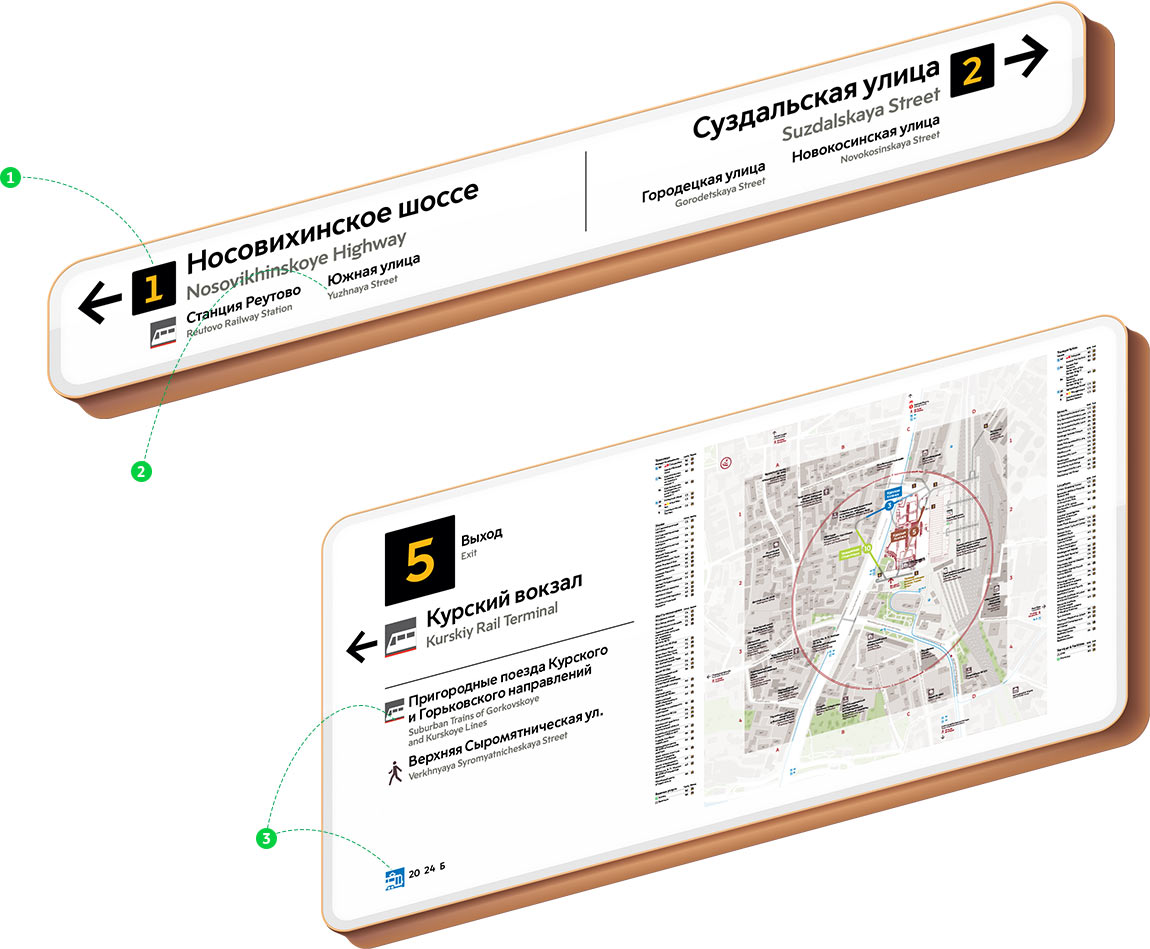

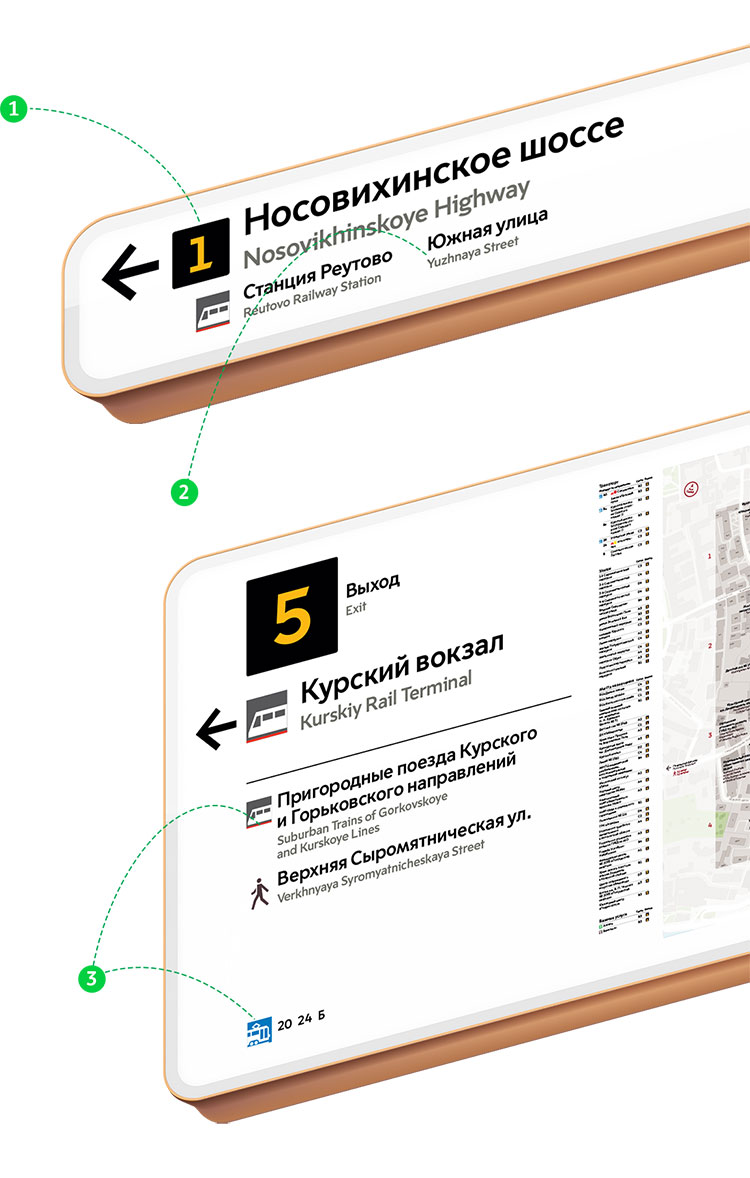

    1. The city navigation concept stipulates that signs should contain only the necessary information. The main direction pointers on the signs are streets and landmarks that scored highest in our rating. They are firmly associated with the station and have high social significance.

    2. Smaller typeface is used to display information about other important landmarks nearby.

    3. Navigation connects the Metro with train stations, airports, suburban trains and buses, all of these are important transit hubs.

    Ranging nearby streets and landmarks

    90% of information planning involved efforts to keep only the most important information on the signs. A carefully designed system was created that automatically determines what qualifies as the most important information.

    Landmarks are awarded points based on a variety of parameters. Can it be seen from the Metro exit? Add a point. Does it have high urban value? Add another one.

    The ranging removes any subjectivity and human interference.

    Landmarks with the highest number of points become main destinations on signs, those with lower become additional



    Before

    After

    Previously, navigation at the outskirts of the city was arranged following the best traditions of municipal formalism. All fourteen exits could easily lead to the same Profsoyuznaya Street and the signs were quick to offer helpful information: Left for Profsoyuznaya! Right for Profsoyuznaya! Do what you will.

    We started displaying building numbers for the closest buildings and directions to the nearest streets on signs. This helps find your bearings and distinguish one side of and endless avenue from the other.

    The fractional part of the building number is never used



    Comfort

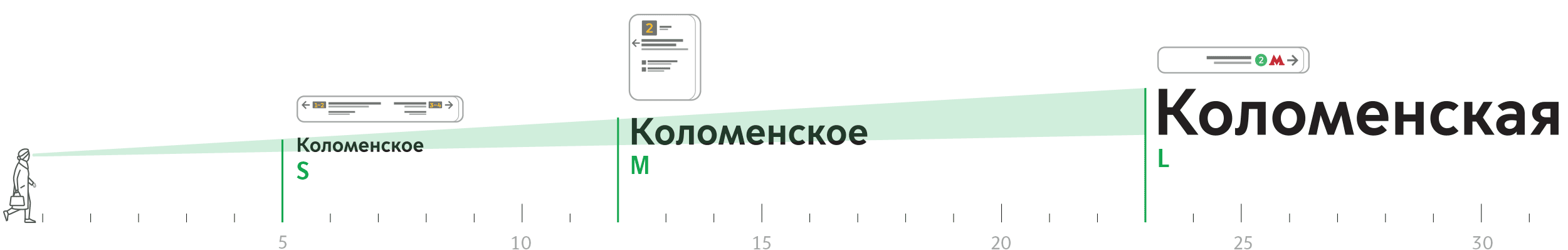

    Passengers read different types of signs from different distances, which is why a special typeface size was chosen for each sign type.

    Size S
    Passengers read the sign at the fork by the station exit on the go, from a very short distance, roughly 5–7 meters (16′–22′)
    Size M
    Passengers read the sign with the exit name while moving in the flow, gradually getting closer to the fork, from a distance of about 10–12 meters (33′–40′)
    Size L
    The sign marking the entrance to the station should be visible throughout the entire passageway, on average starting at a distance of 20–23 meters (66′–75′)

    Predictability of information on signs

    In long passageways pedestrians often get the feeling they got lost and are moving in the wrong direction. Even if they just saw a sign, a couple of minutes later they get the same anxiety: “What if I missed my turn?”

    That’s why the information on navigation signs is duplicated and repeated. The closer to the exit, the more detailed the list of the nearest streets and landmarks becomes.

    Predictability of information on signs

    In long passageways pedestrians often get the feeling they got lost and are moving in the wrong direction. Even if they just saw a sign, a couple of minutes later they get the same anxiety: “What if I missed my turn?”

    That’s why the information on navigation signs is duplicated and repeated. The closer to the exit, the more detailed the list of the nearest streets and landmarks becomes.

    1. Signs inherit information

    2. All primary and additional directions move on to following signs

    3. The closer the sign is to an exit, the more detailed it is

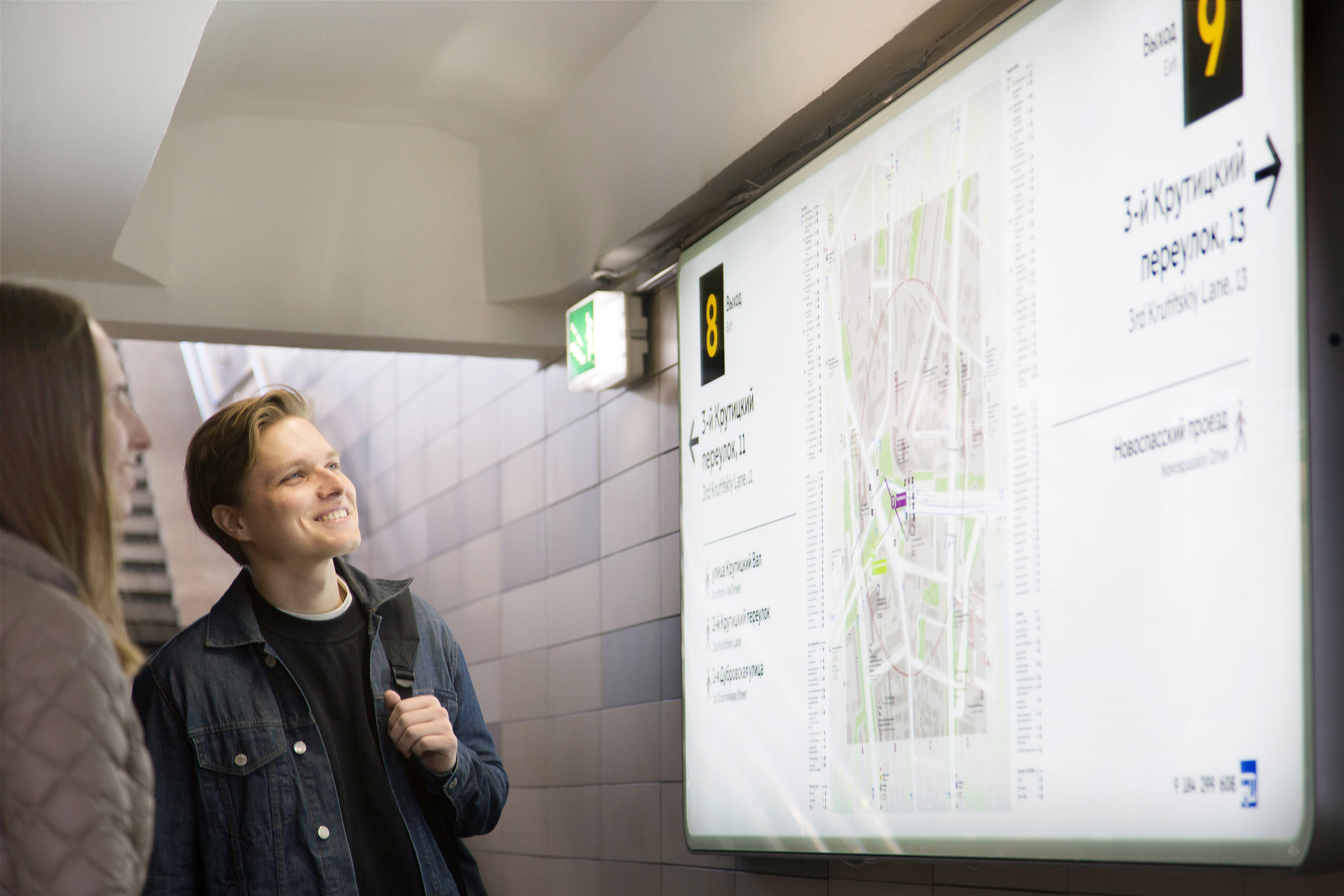

    4. At any moment, pedestrians can look at a map

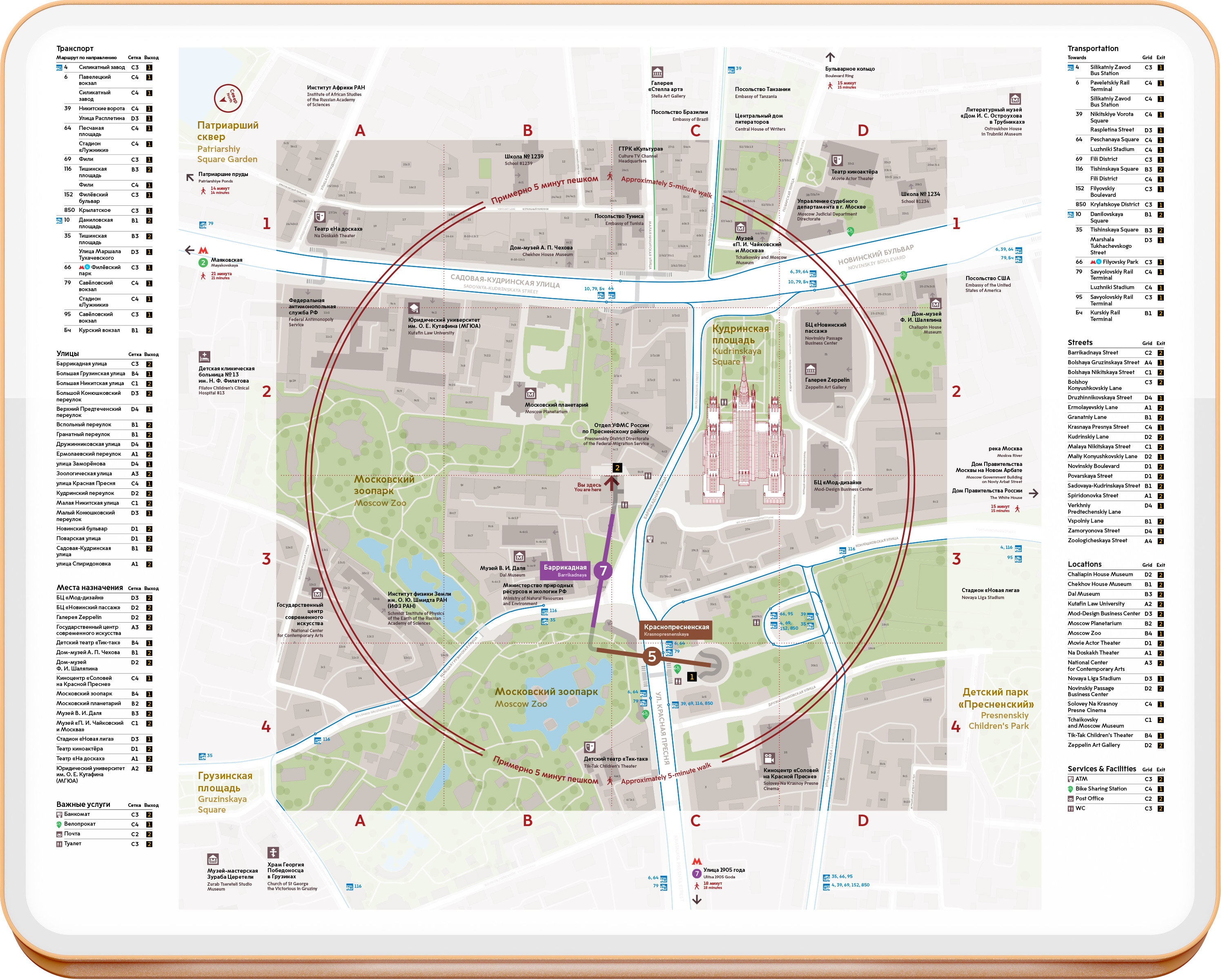

    Maps and indexes

    Stations now have maps with a detailed alphabetic index. Map graphics and index layouts were improved at the studio.



    Rules for drawing maps and adding information to them are collected in a separate guide.

    Language

    Special attention was given to the Russian and English wording for navigation media. A detailed guide was created with rules of spelling, translation, transliteration, abbreviation and typography of names of all possible city objects and place names used in navigation.

    Overall, 2500 sign mock-ups and over 500 maps for 96 stations were created for the project.
