RRR Front Back Remote Interface Project

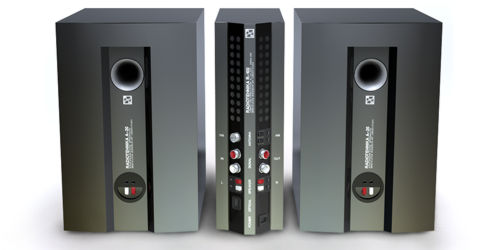

All the plugs and sockets you may need can be found on the back panel:

  • AM and FM antenna connectors;
  • RCA input and output;
  • spring clips for connecting external audio devices;
  • optical output for MD recording.

With R–100 back panel layout you will learn that connecting it all correctly is not hard—it is so convenient and simple, that even the most unexperienced users can manage on their own.

To R–100 you can connect, for instance, your MP3 player
