  • The making of the Scout helicopter interior

    Overview
    • Process
    Hi Res

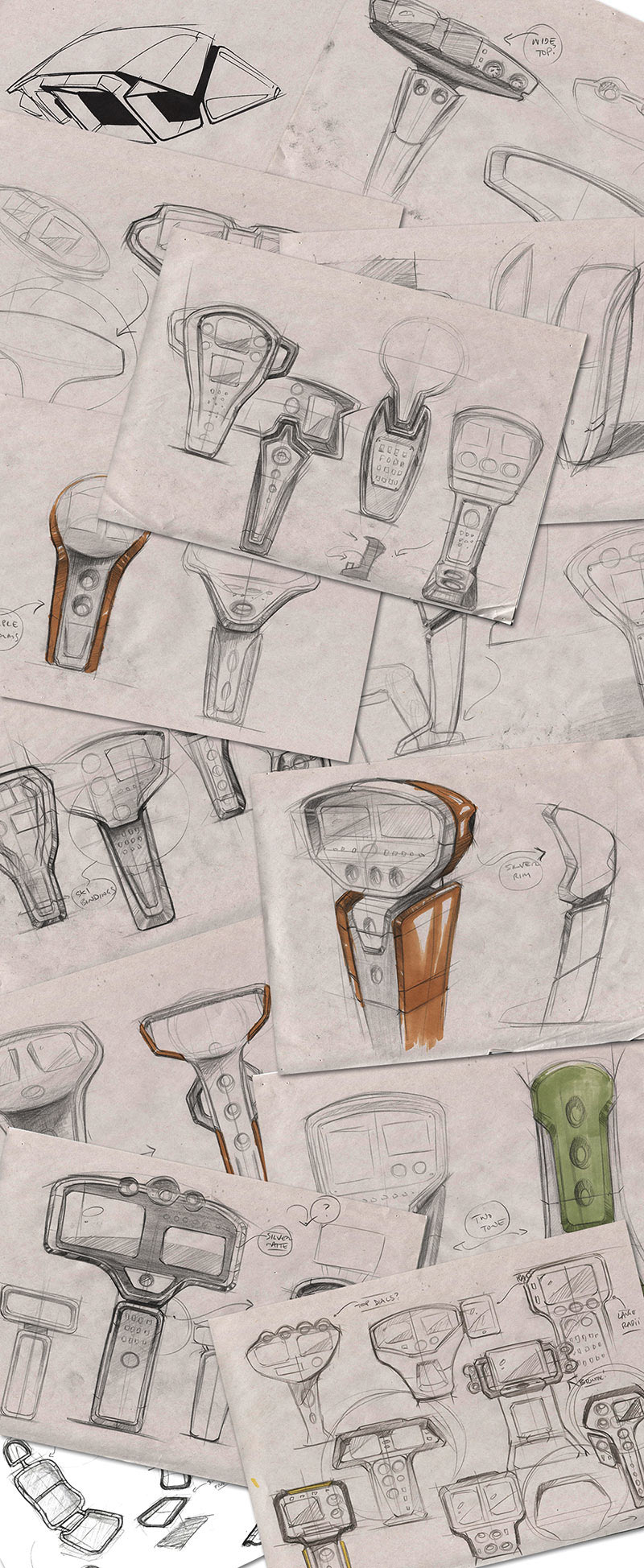

    Making the first sketches of the interior.

    scout interior process 03

    Starting to elaborate.

    scout interior process 02

    Going deeper. The main elements are the instrument panel and the overhead console.

    scout interior process 01
    scout interior process 04
    scout interior process 05
    scout interior process 06

    Preparing preliminary variants of the color and texture solution of the interior.

    scout interior process 07

    Choosing two instrument panel designs. Making quick renders.

    scout interior process 08

    Considering an internal panel with a handle.

    scout interior process 09

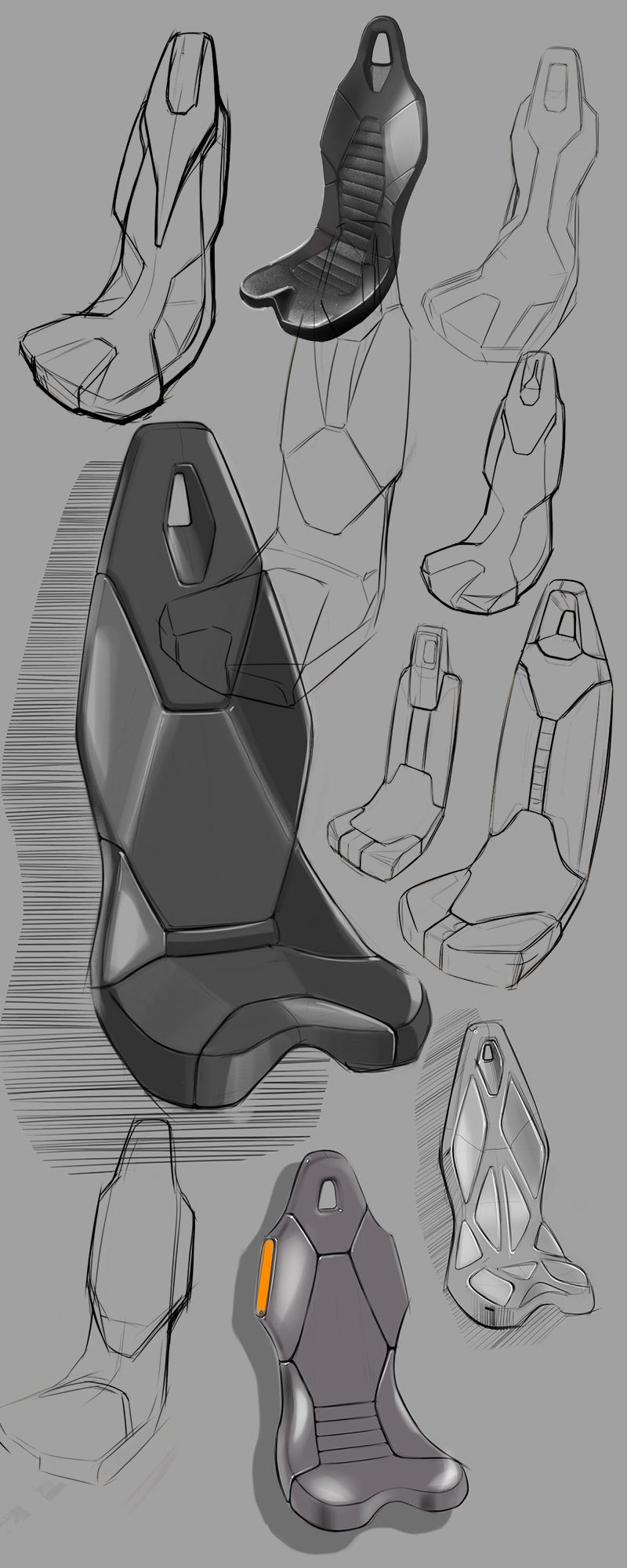

    Suggesting graphics and upholstery cutting pattern based on donor seats.

    scout interior process 10

    The client chooses the final design.

    scout interior process 11

    Correcting problematic areas of the chosen panel.

    scout interior process 12

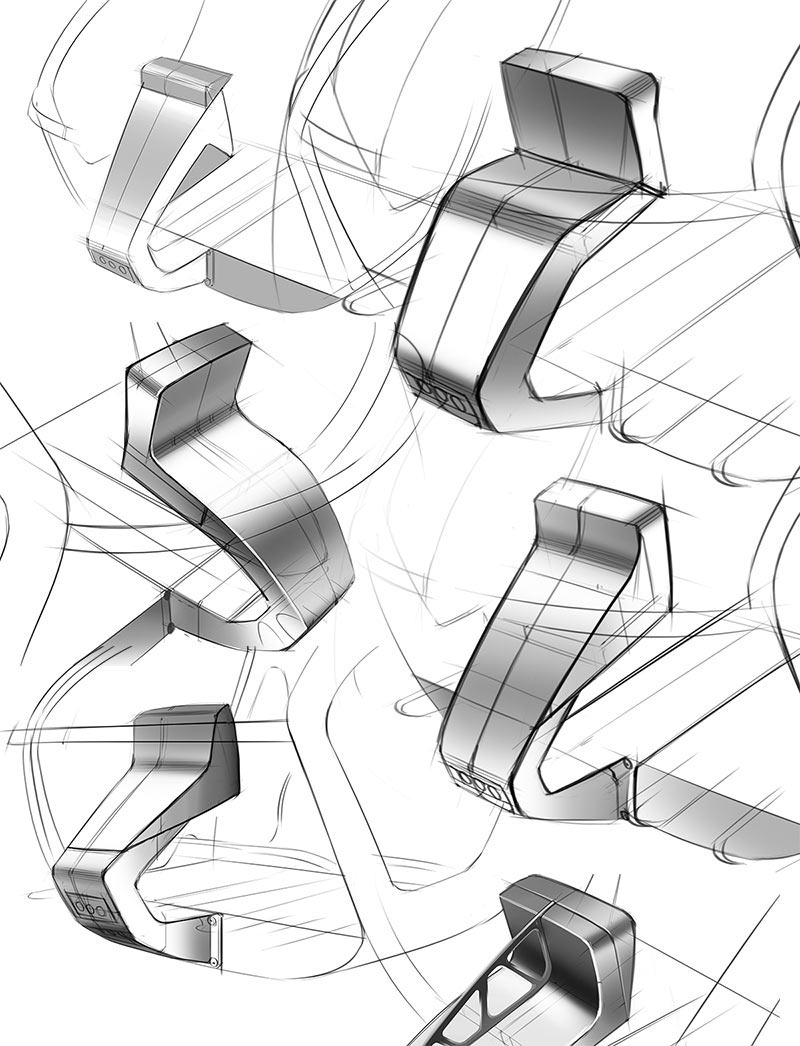

    The client wants an original cyclic stick. Making sketches.

    scout interior process 13

    Creating a clay mock-up.

    scout interior process 14

    Building a 3D model.

    scout interior process 15

    Tying the interior and the exterior together.

    scout interior process 16

    Starting to work on the overhead console. Reading the documentation, searching for reference images.

    scout interior panel process 01

    Generating the first designs, choosing the direction.

    scout interior panel process 02

    Showing to the art director.

    scout interior panel process 03

    Art director: Looks horrible. The typeface is too playful. Have a look at back panels of sound amplifiers.

    Doing so.

    scout interior panel process 04

    Choosing a more subdued typeface and making another approach.

    scout interior panel process 05

    Art director: The alignment is horrible. There’s a hole to the right of the intercom switch. In the third block from the top the words in frames don’t stretch the entire width of the switches they relate to. In other words, absolute trash.

    Creating other variants.

    scout interior panel process 06
    scout interior panel process 07
    scout interior panel process 08
    scout interior panel process 09
    scout interior panel process 10
    scout interior panel process 11

    Bringing to the art director.

    scout interior panel process 12

    Art director: Yes, that’s better, but there is still too much Soviet Union here.

    Trying alternative designs.

    scout interior panel process 13

    Art director: Still, it’s back to the USSR.

    Getting rid of all the decorations, changing the typeface.

    scout interior panel process 14

    Art director: Now it doesn’t look serious. It’s a helicopter, not a hipster cryptowebsite.

    scout interior panel process 15

    Art director: Nope, bring the group frames back.

    scout interior panel process 16

    Art director: Now go play with the brightness and the typeface. And the widths. Right now it wouldn’t look good even on a children’s sound synthesizer.

    scout interior panel process 17

    Art director: Everything is better in Number 3. Get rid of the lower case.

    scout interior panel process 18

    Art director: Number 3 is a very early hope. Have a look at panels in real helicopters and airplanes.

    Going back to exploring the panels. Making sketches. Trying to add the captions and on/off indicators. Testing hypotheses.

    scout interior panel process 19

    Art director: Number 2 is getting really close.

    scout interior panel process 20

    Art director: 1.2 Let’s play with captions. Replace the “off” with an X, for example. Or make the word stand out graphically.

    scout interior panel process 21

    Art director: Number 2 is interesting. Try to fill the bar behind off in color and turn off the outline.

    scout interior panel process 22
    scout interior panel process 23

    Art director: Number 4 is OK but less space around OFF.

    scout interior panel process 24

    Art director: Number 2. Get rid of the bars, let’s make sure the typeface itself is blocky enough. And add the captions for “on” everywhere, too.

    scout interior panel process 25

    Art director: 1 is OK.
