    The making of the Luzhniki Stadium navigation

    Overview• Process

    Introduction

    Receiving building plans and renders from the client. Getting inspired by the scale of work, understanding all the details, putting together a list of questions, getting advice from the project authors. The stadium is being completely renovated, the only parts remaining from the previous arena are the outer walls.


    Zoning

    At the first stage of the project there is no information about additional fencing inside the stadium. Looking at physical limitations and suggesting to divide the arena using a cross shape. Carefully reading FIFA regulations and listening to the client’s feedback. At the end, deciding to go with the classic division by stands.

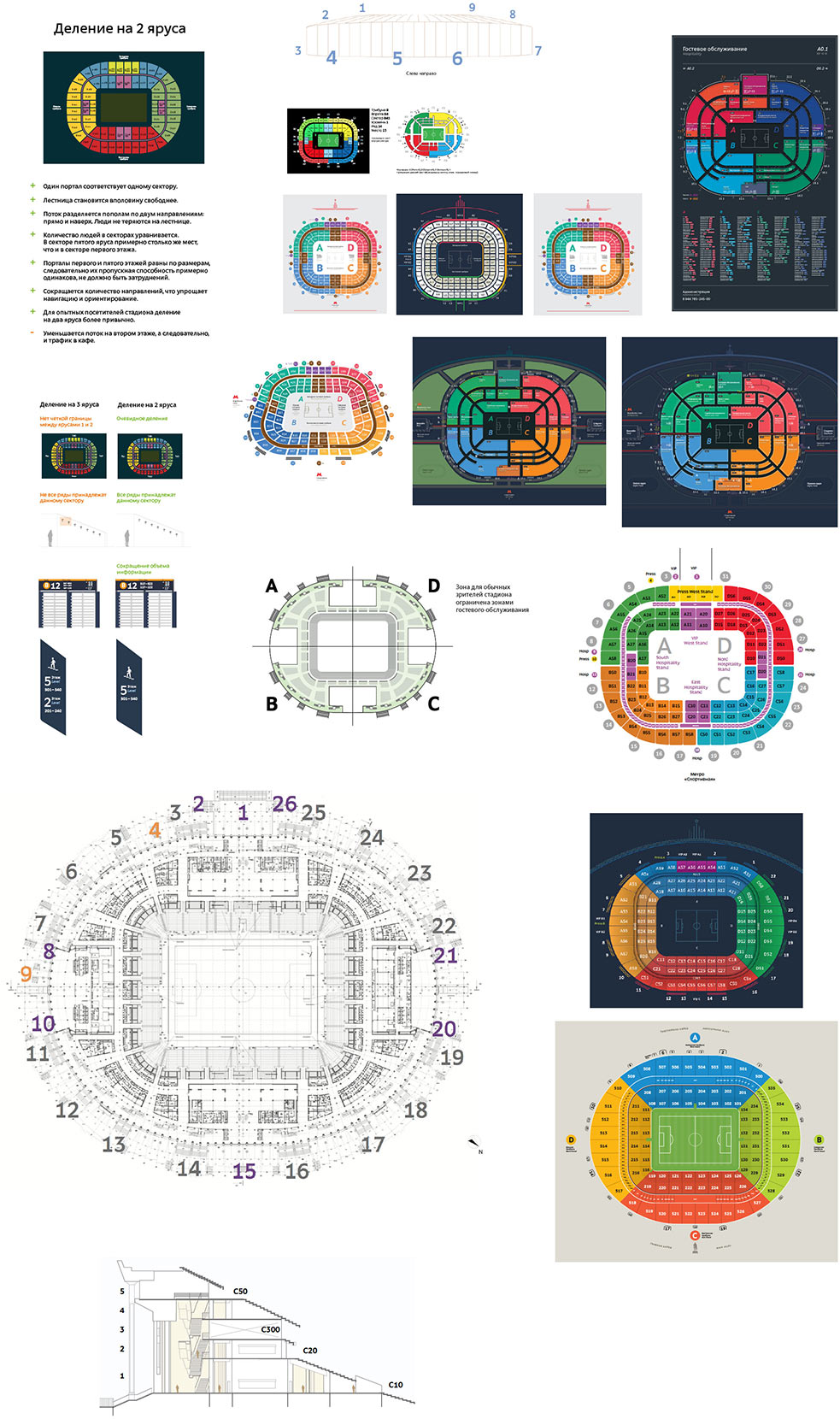

    We start by dividing the stadium into three levels plus the skybox level, since there is a passageway to the lower level from the other two.

    luzhniki navigation process 01

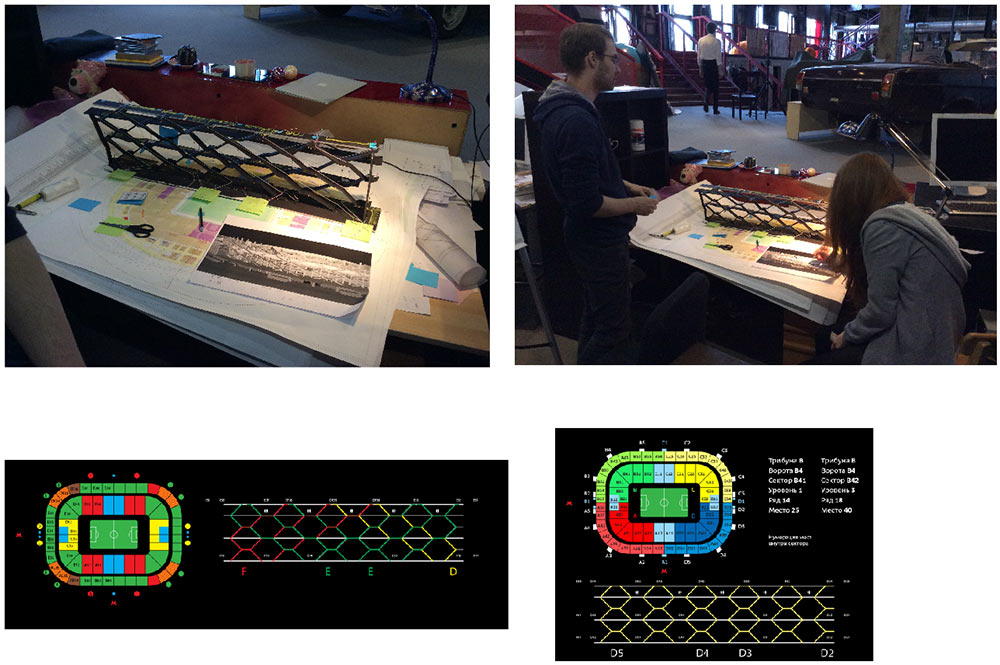

    The first thing we notice is a huge cascading staircase. We get a strong desire to organize it somehow to prevent mistakes people can make when coming up or down. Fortunately, we quickly realize we shouldn’t limit movement on the stairs and give stadium visitors the opportunity to take a walk.

    luzhniki navigation process 02

    Information planning

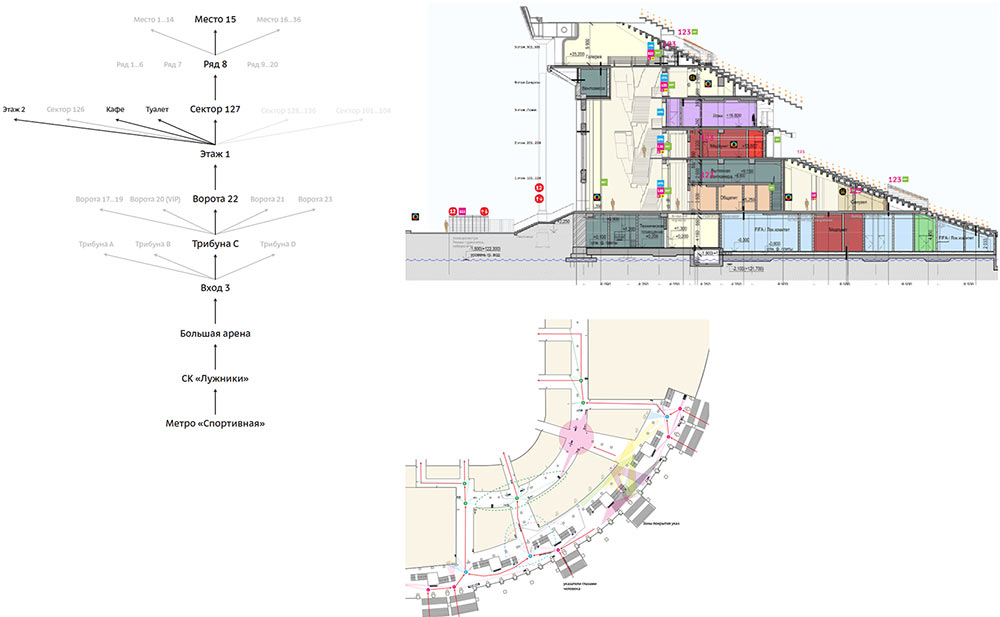

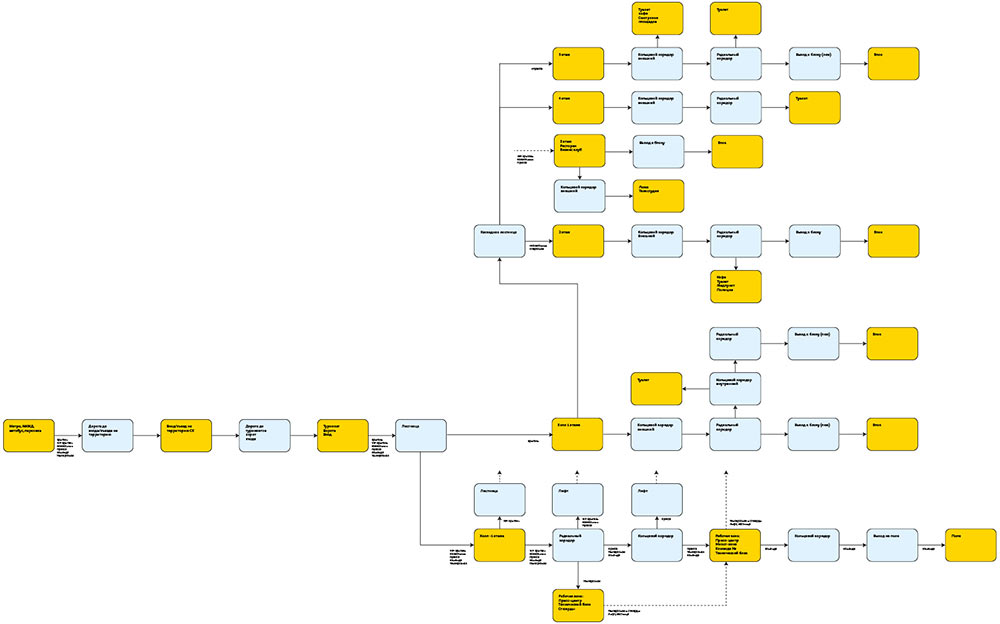

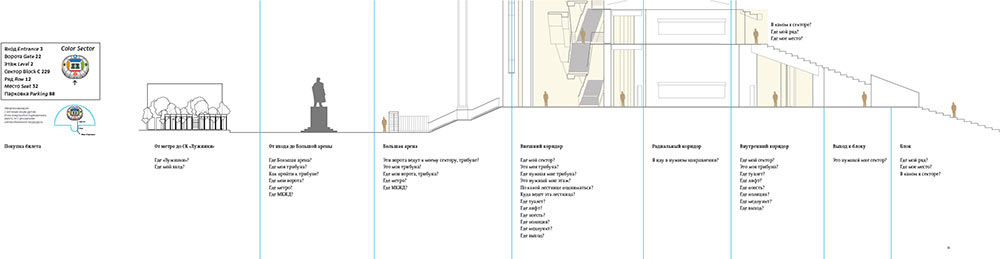

    Writing down questions visitors can have when they travel form a Metro station or a parking lot to their seat. Discussing the list of questions with the stadium’s administration. Creating a diagram of information messages for various zones.

    luzhniki navigation process 03
    luzhniki navigation process 05
    luzhniki navigation process 06

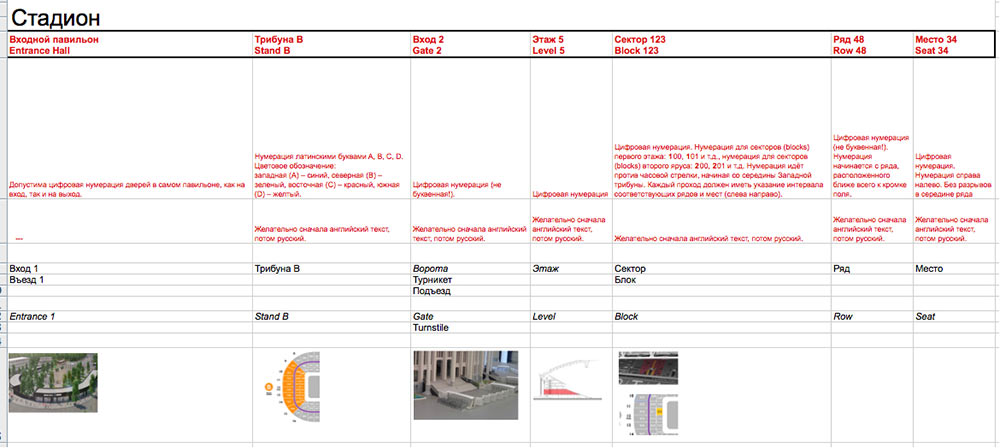

    Clarifying terminology with the stadium’s administration and FIFA Committee (spoiler: it will change).

    luzhniki navigation process 07

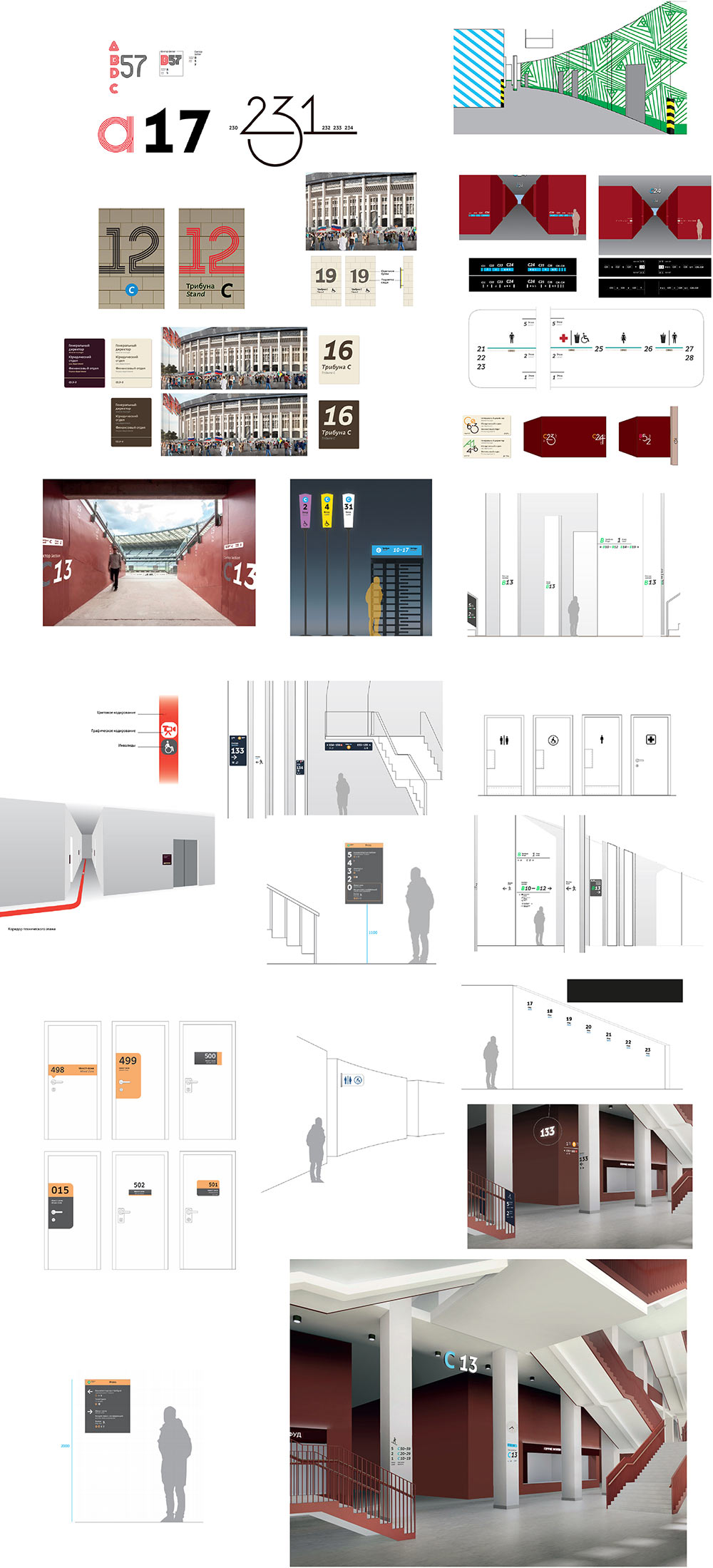

    Making the first sketches of the graphics.

    luzhniki navigation process 08

    Placement

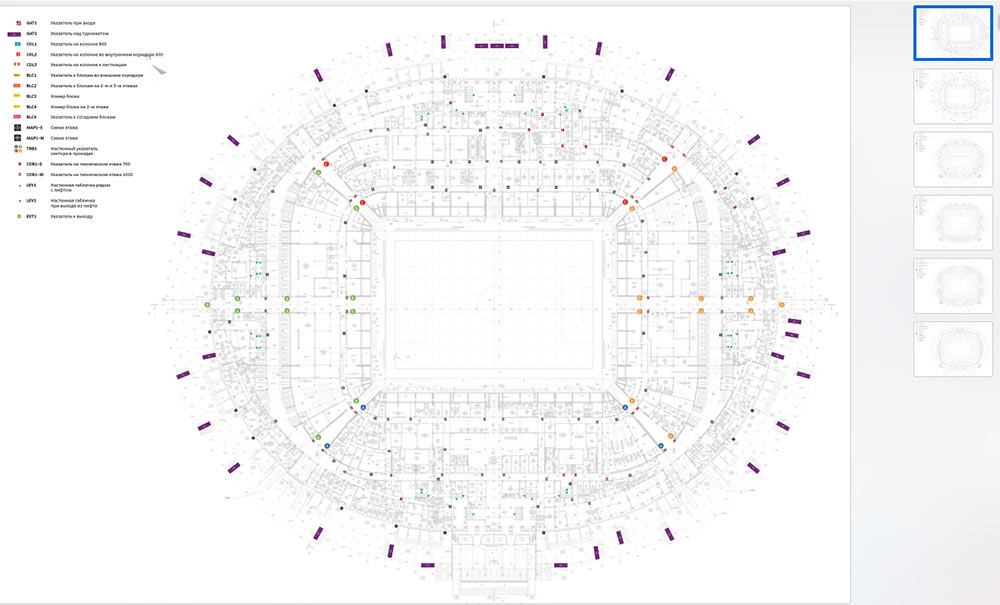

    Breaking down the information messages into individual signs and placing them on floor plans. The placement is constantly updated, some signs are combined together, others are broken up.

    luzhniki navigation process 09

    First tests

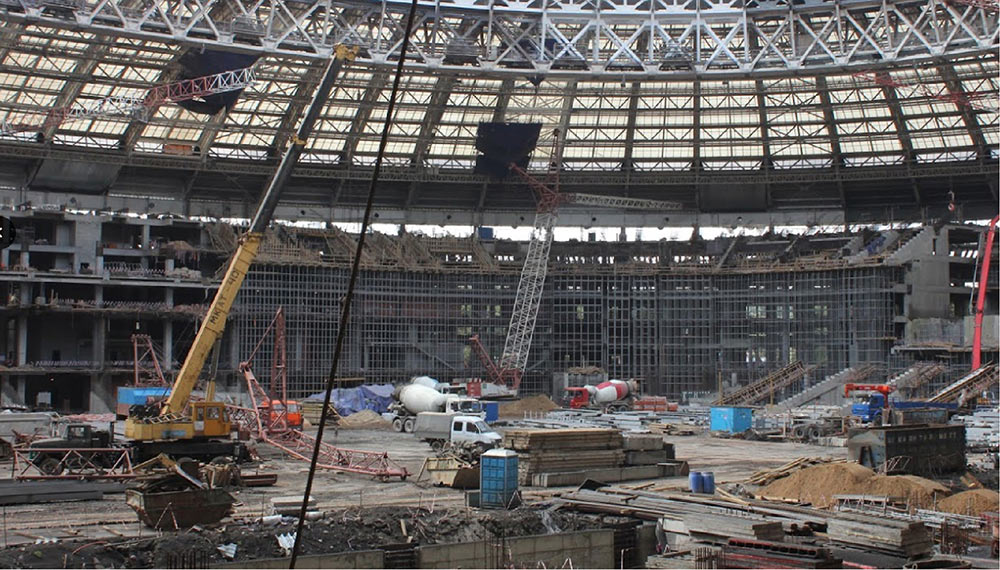

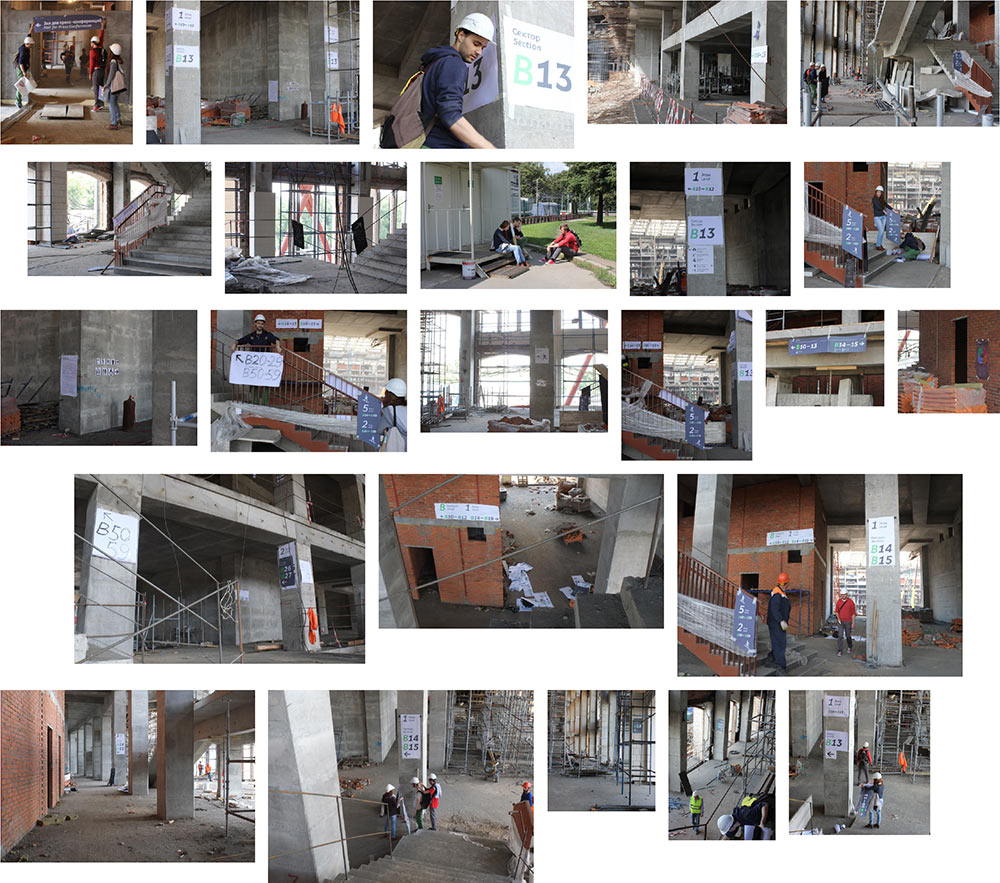

    As soon as the first corridor is built, grabbing the first set of draft signs and going to the stadium.

    luzhniki navigation process 11
    luzhniki navigation process 12

    The stadium gains shape: making another visit to see the space and take additional measurements.

    luzhniki navigation process 13

    Tests with questions

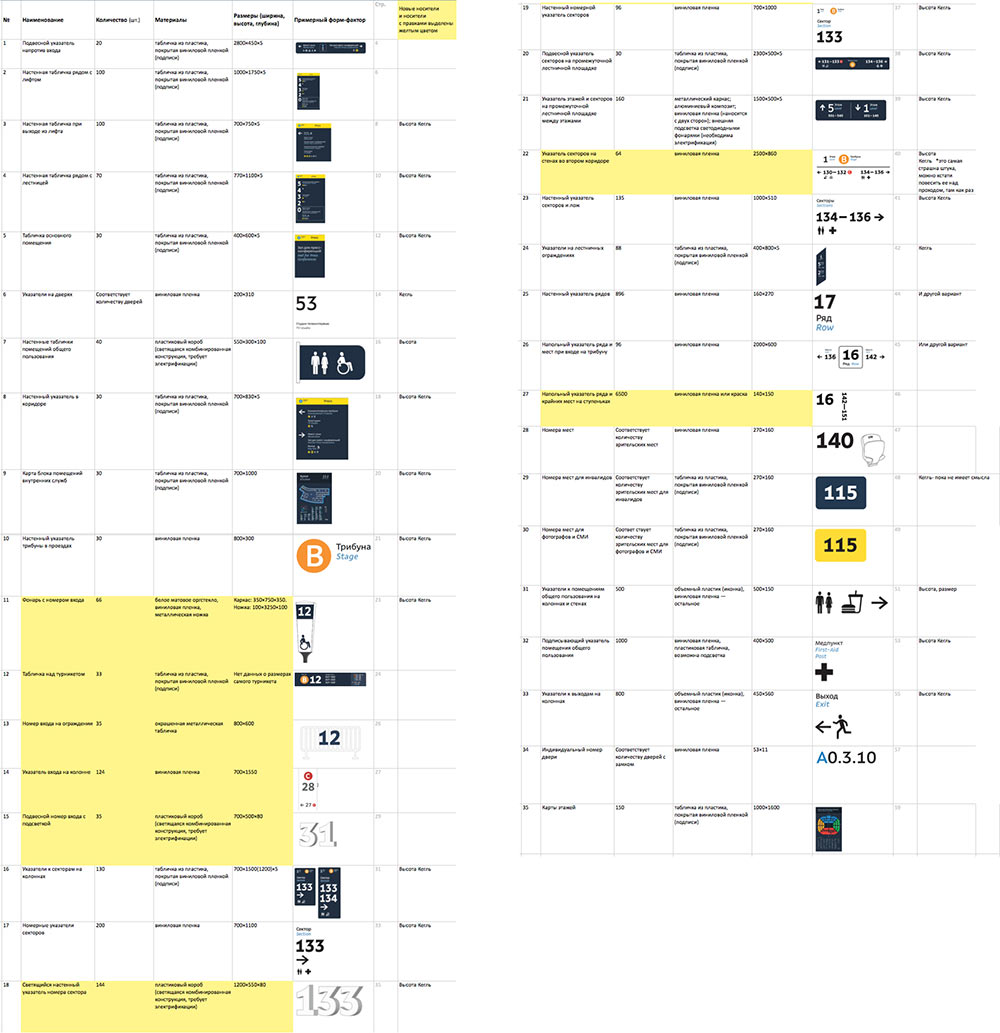

    Bringing all the signs to a common design since the stadium follows the design principles of the Olympic Complex. Preparing questions for each sign and taking this table with us to another real-life test.

    luzhniki navigation process 14

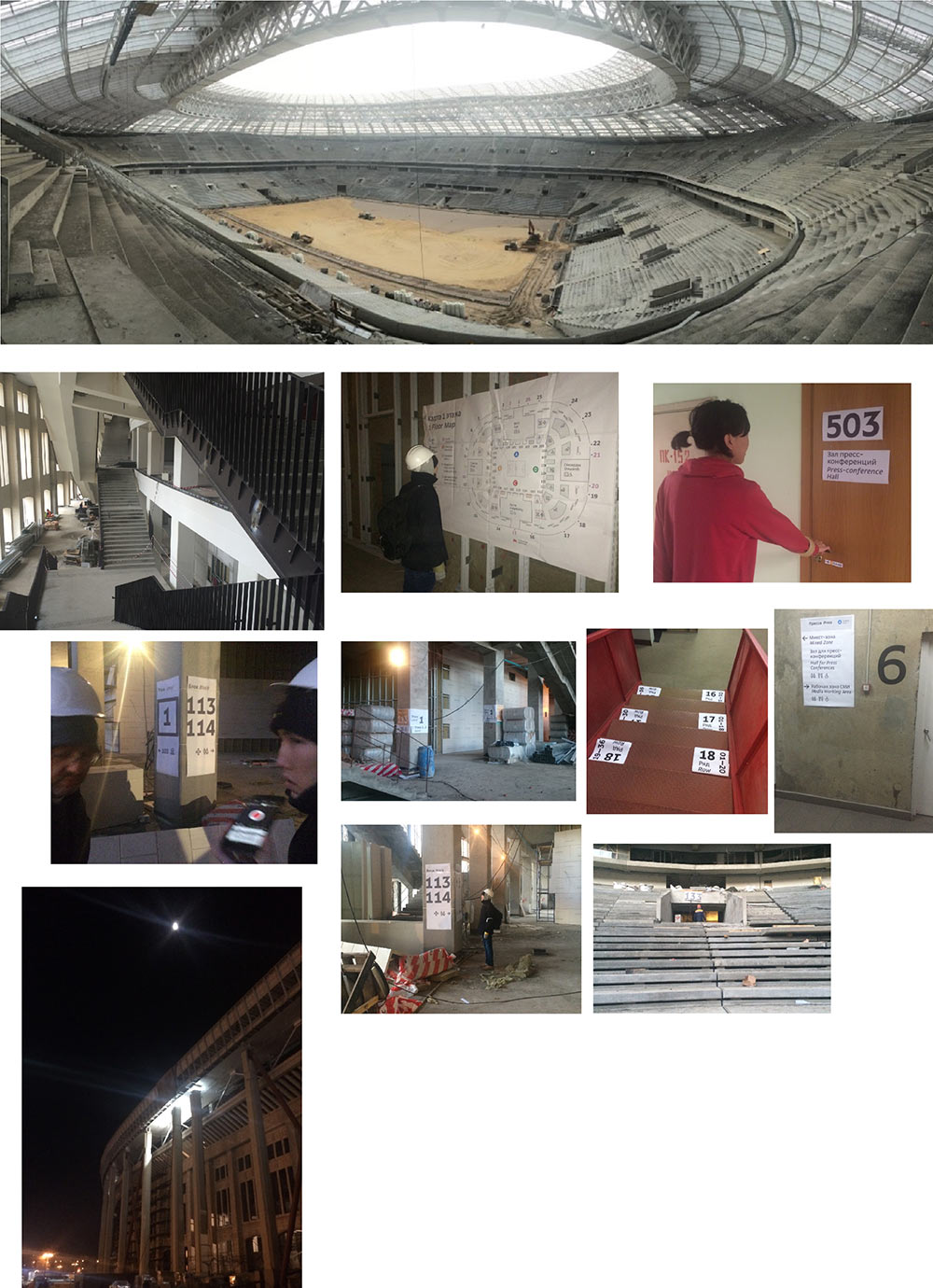

    Testing some of the signs at the studio but even this doesn’t prevent us from being the last ones out of the stadium late at night. When planning a winter test in the unfinished stadium we should definitely think of taking some hot tea.

    luzhniki navigation process 15

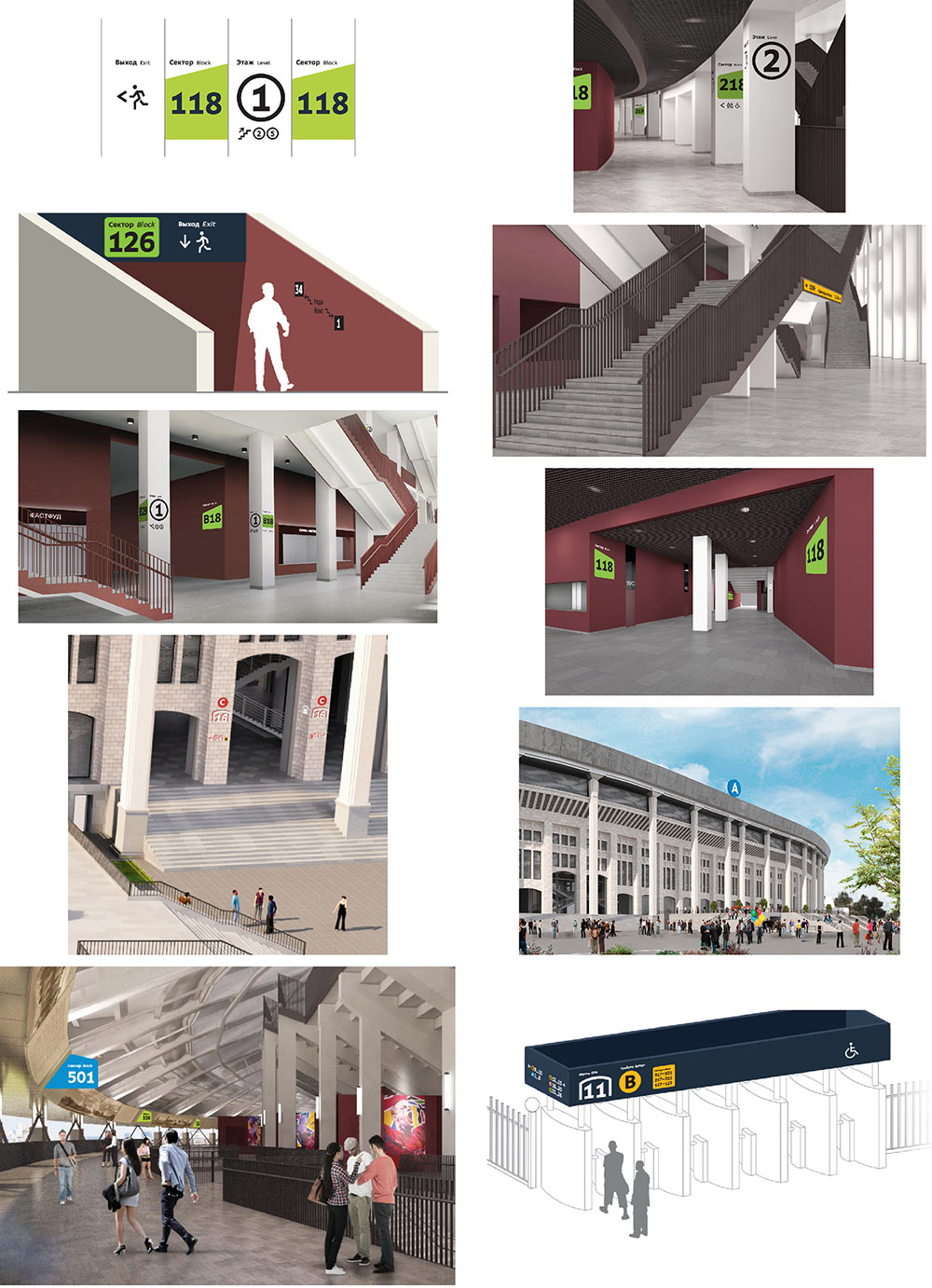

    Updating the graphics and the messages on signs.

    luzhniki navigation process 16

    Stadium mock-up, testing hypotheses and finalizing graphics

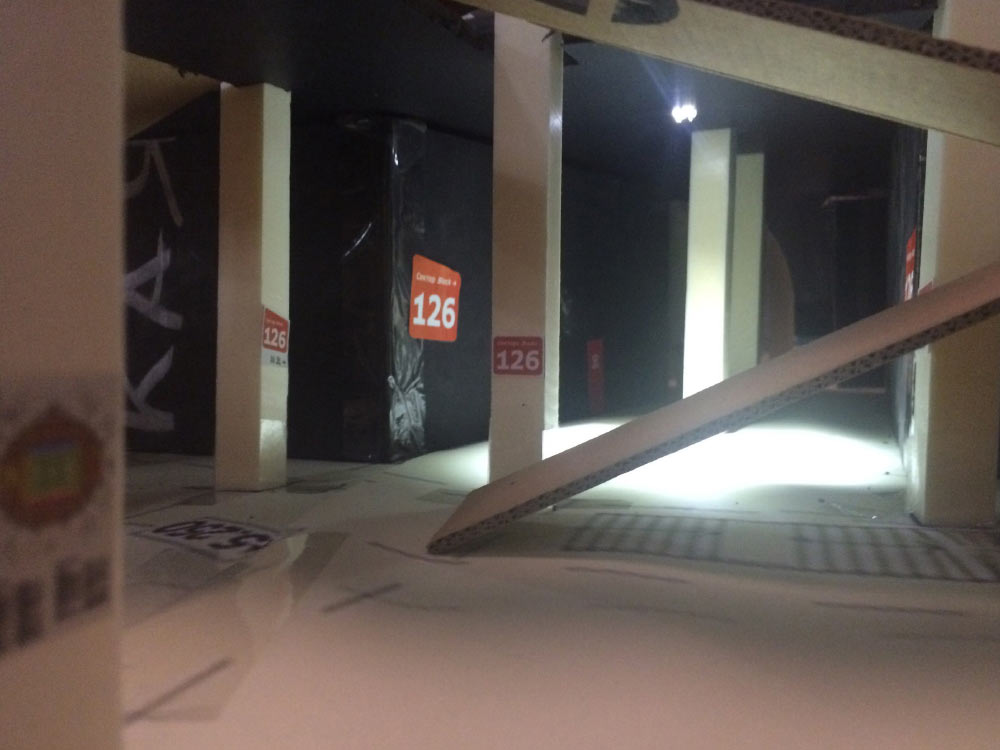

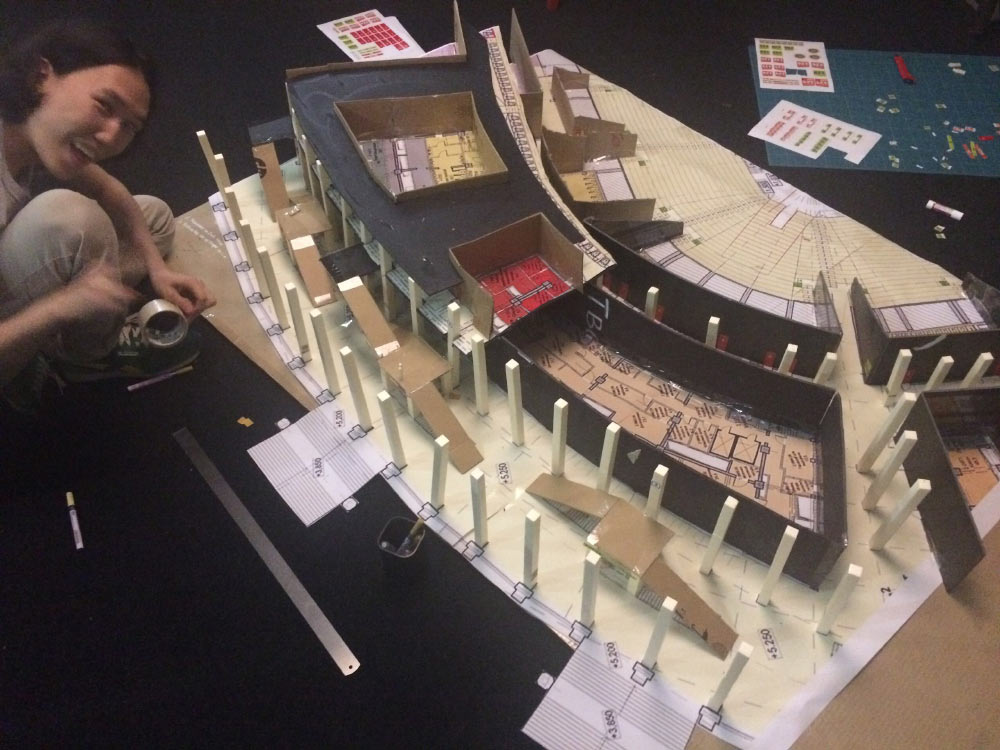

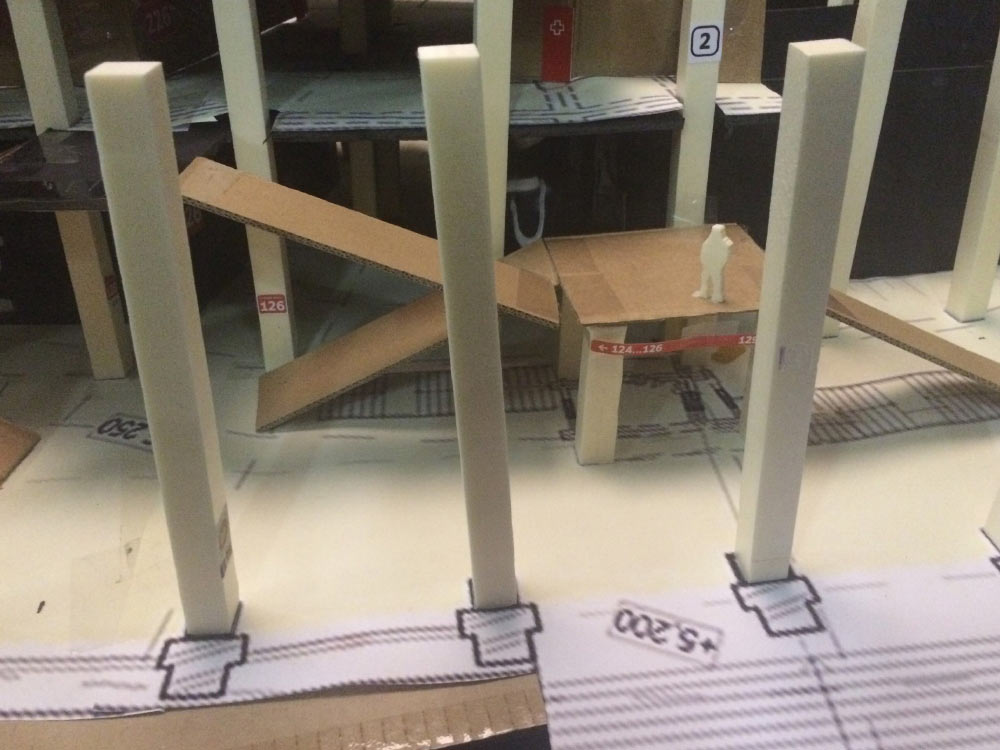

    Unexpectedly, the stadium interior gets updated: the wall color changes from dark red to light gray. Creating a mock-up of the stadium to quickly test some of the hypotheses.

    luzhniki navigation process 17 01
    luzhniki navigation process 17 02
    luzhniki navigation process 17 03

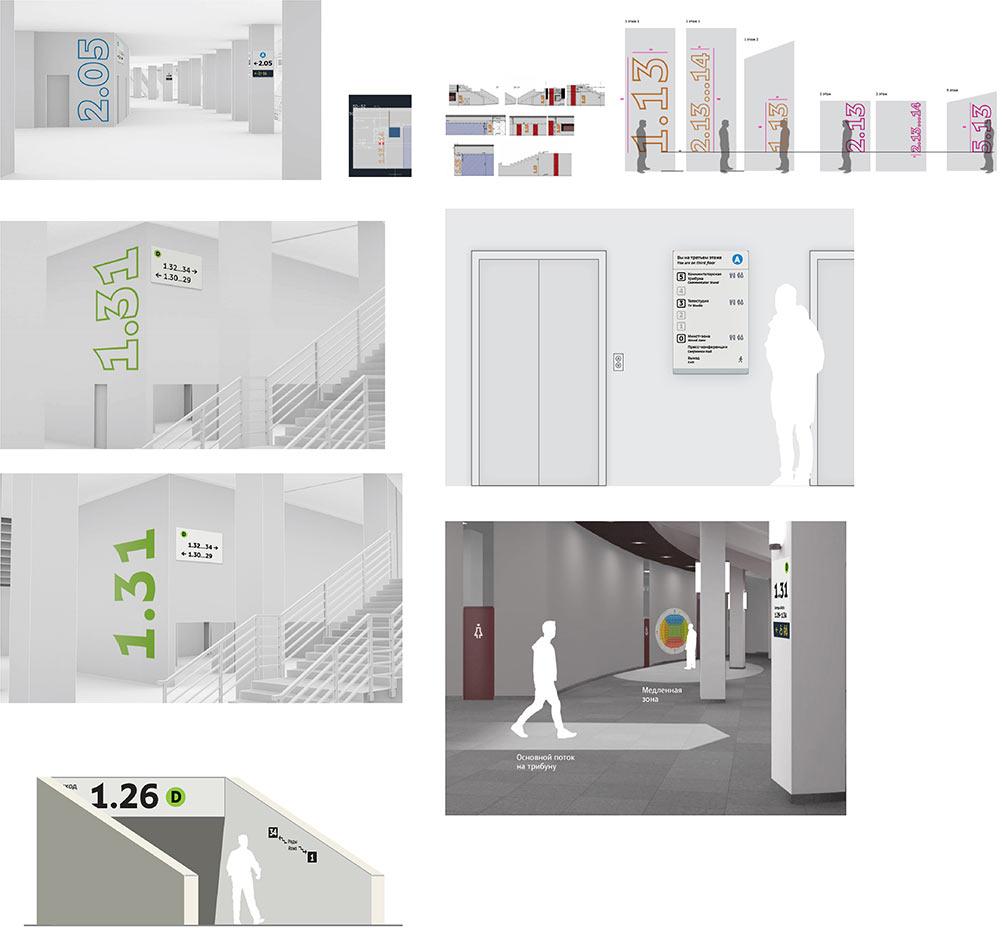

    Getting the idea to separate the level number from the sector number with a dot. This makes the style visually lighter. Updating all signs accordingly.

    luzhniki navigation process 18

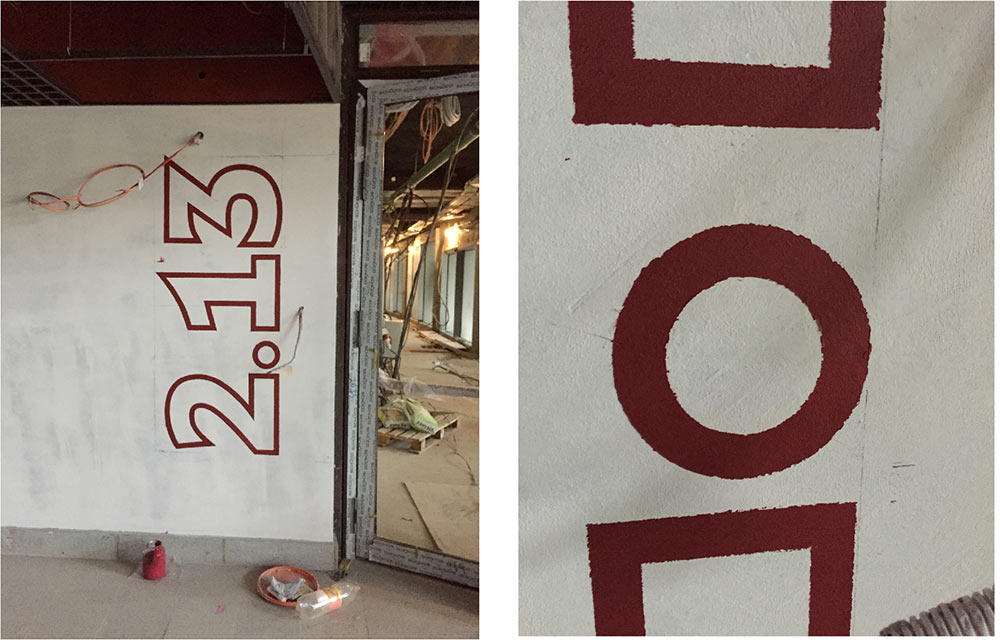

    Originally, we planned to apply most of the signs with paint but test runs revealed the quality to be subpar. Creating signs.

    luzhniki navigation process 19

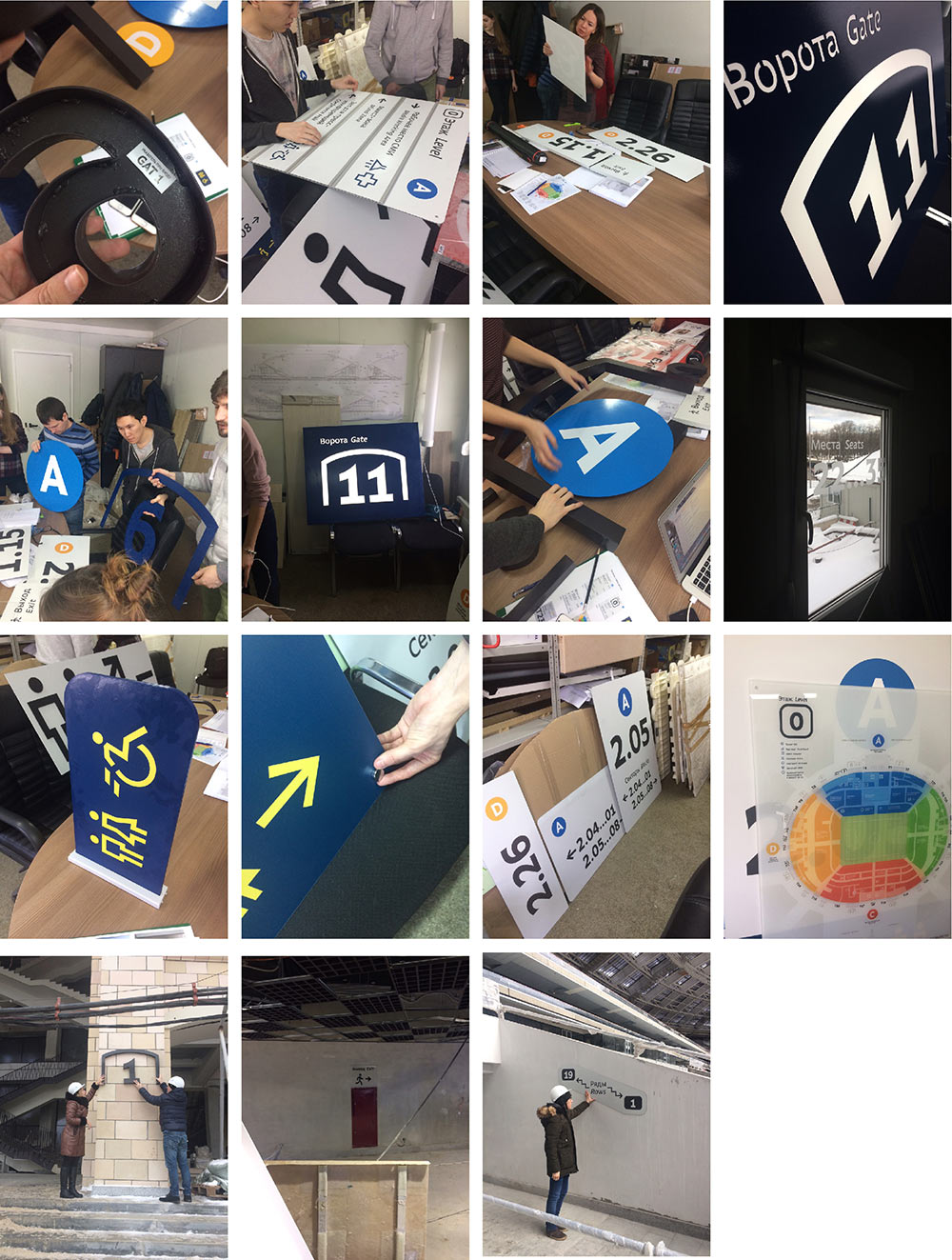

    The contractor brings samples of all signs. Studying, discussing, choosing, visiting the stadium to try them on walls.

    luzhniki navigation process 21
    luzhniki navigation process 22

    Unexpectedly, the stadium administration suggests their own zoning system: one sector per one large radial corridor and two levels. Redrawing all signs. The volume of the content goes down but now we have additional signs for navigation to seats.

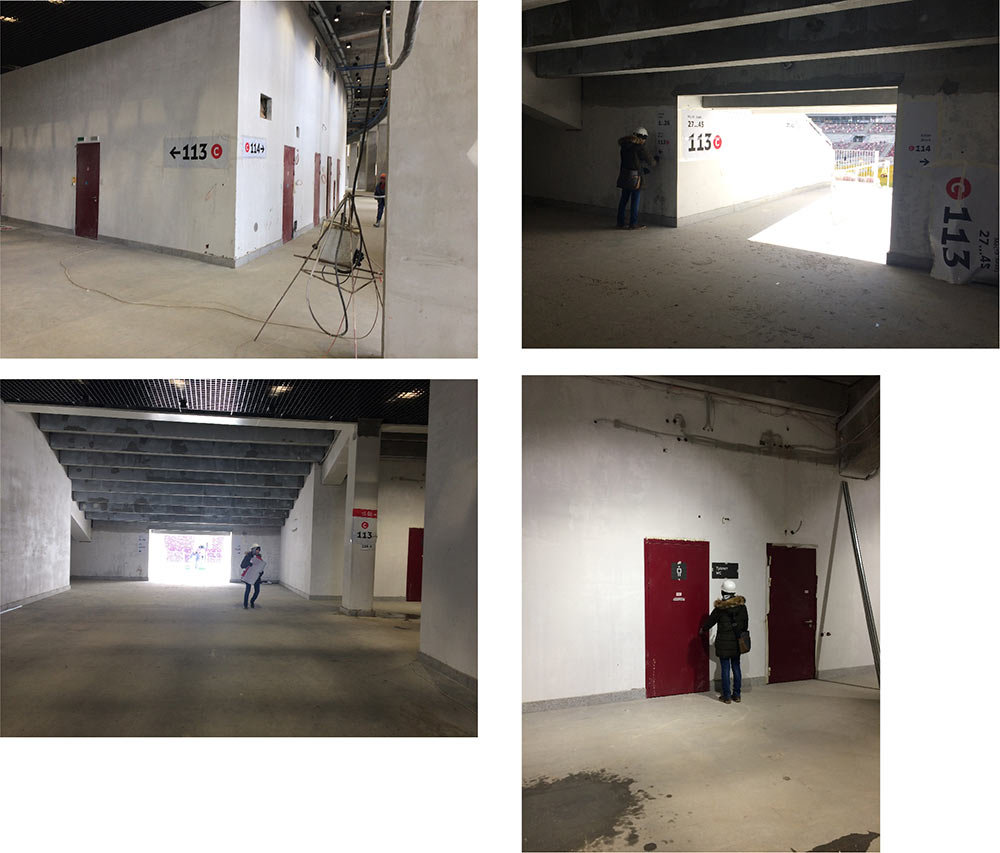

    Trying the signs with new graphics and zoning system.

    luzhniki navigation process 20

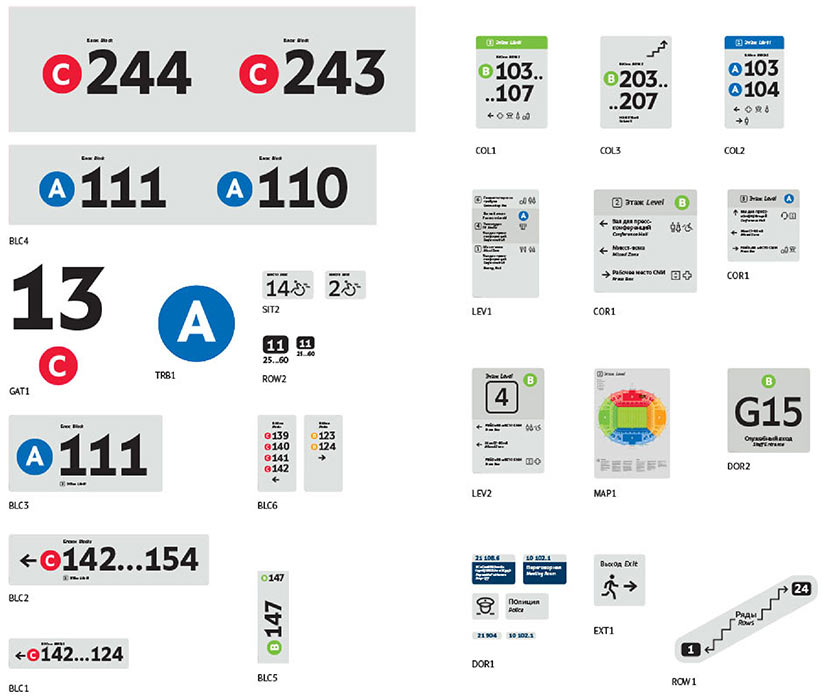

    A couple of weeks later a new zoning system comes in, this time from the FIFA Committee. Adapting the signs to the new system and sending for production.

    luzhniki navigation process 23

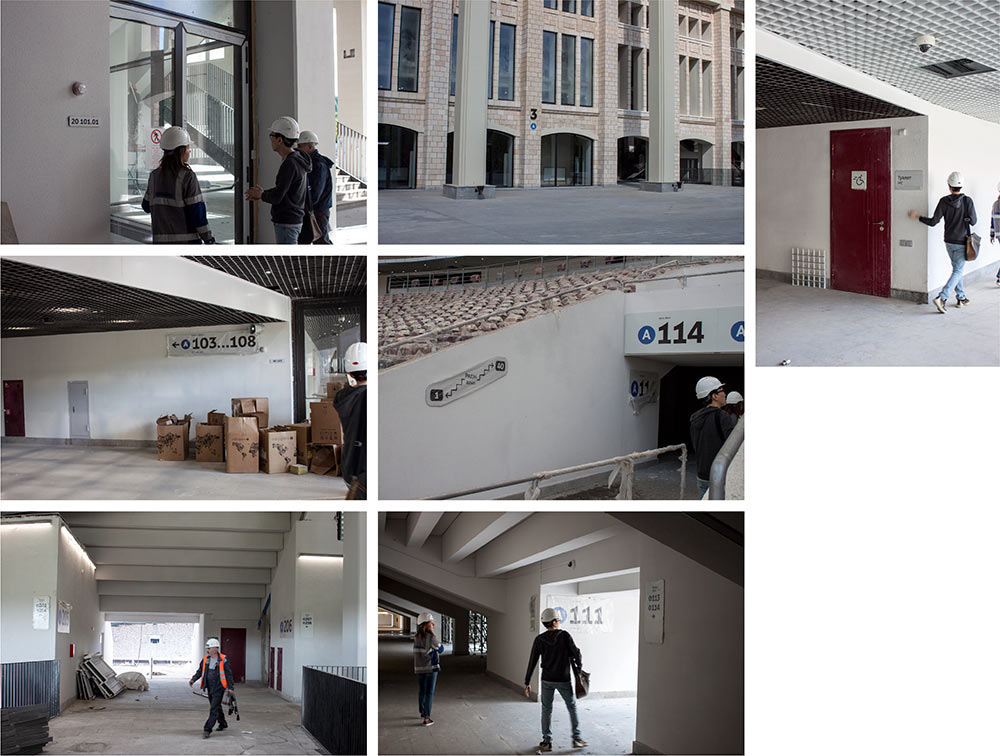

    Looking at the first production signs, leaving feedback and waiting for the stadium to open.

    luzhniki navigation process 24
