    The making of the Urnus-11 trash can

    Oveview   Process

    The first sketches.

    urnus 11 process 01

    Maybe, a simple bag holder?

    urnus 11 process 02

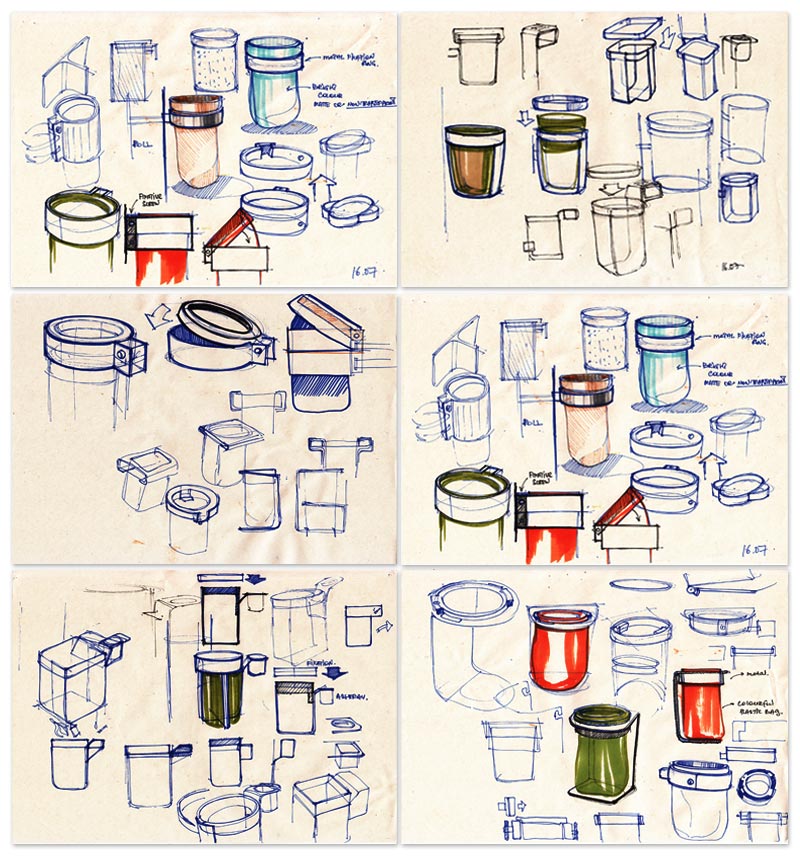

    Considering variants for bag attachment.

    urnus 11 process 03

    Working on the variants of the bottom and the lid hinge. Protecting the trash bag with a metal mesh.

    urnus 11 process 04

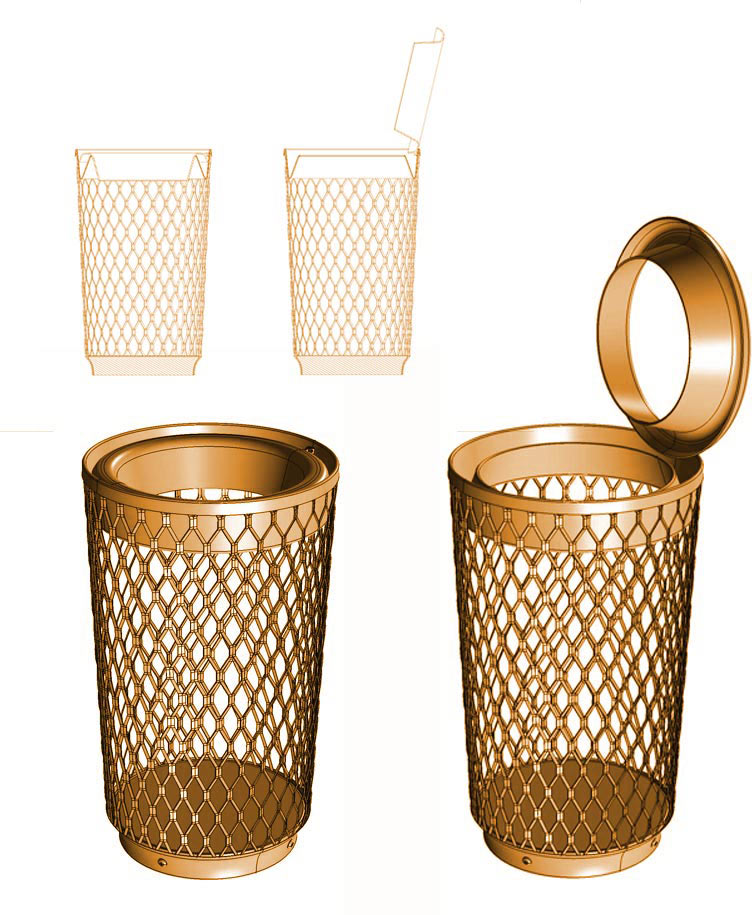

    Choosing the design which hides the edges of the trash bag. Checking the movement.

    urnus 11 process 05

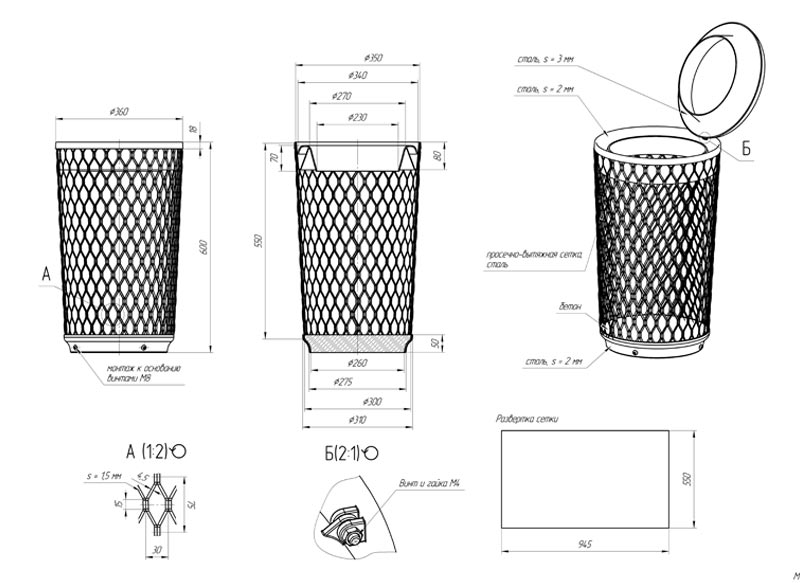

    Prototype production blueprints.

    urnus 11 process 06

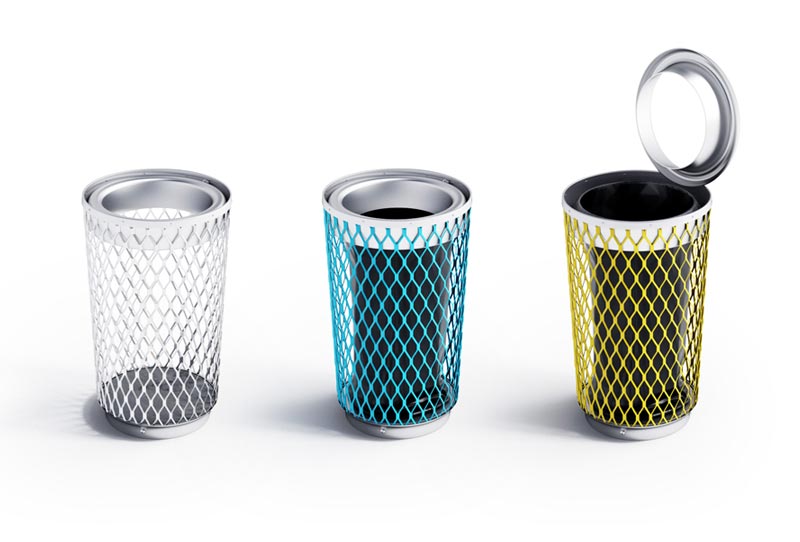

    Test visualization.

    urnus 11 process 07

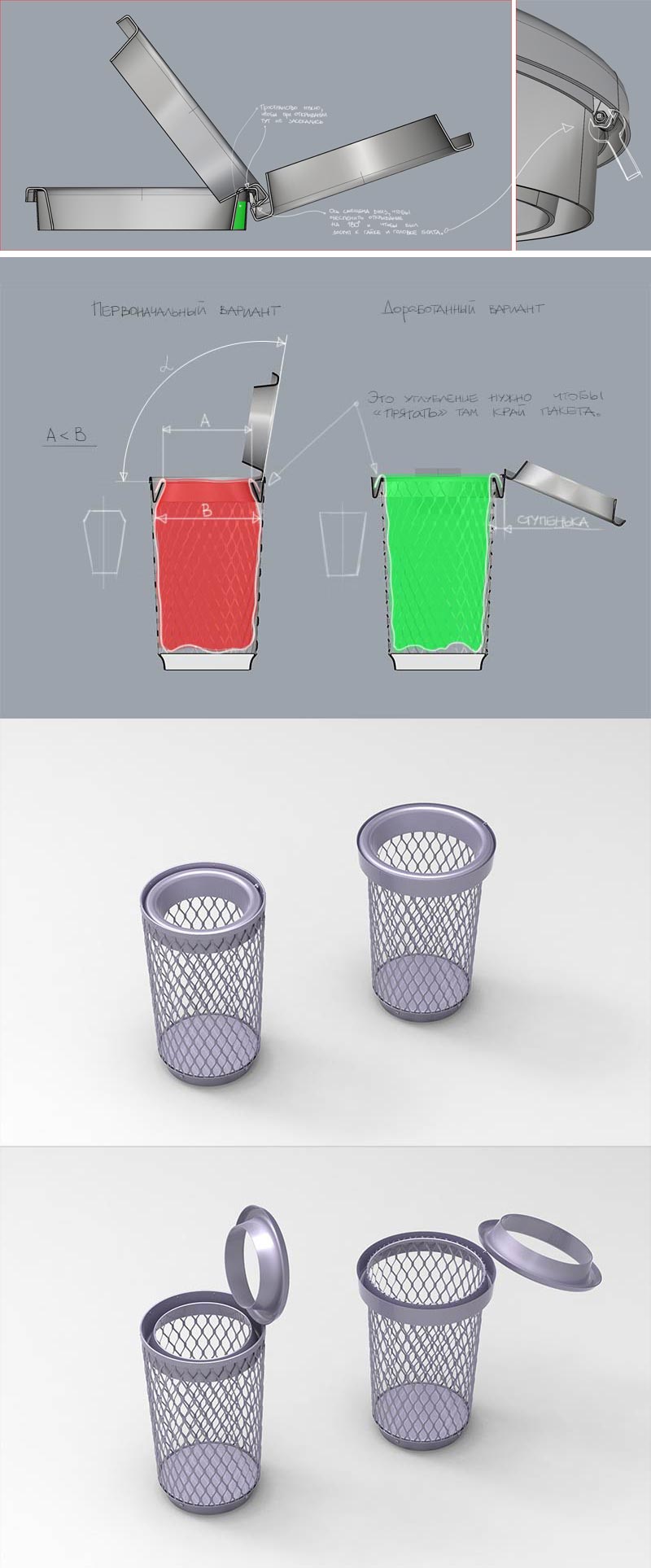

    The production contractor notices that the construction of the lid will make taking out a full trash bag impossible. We need to match the diameter of the opening with the inner diameter of the trash can. Making corrections.

    urnus 11 process 08

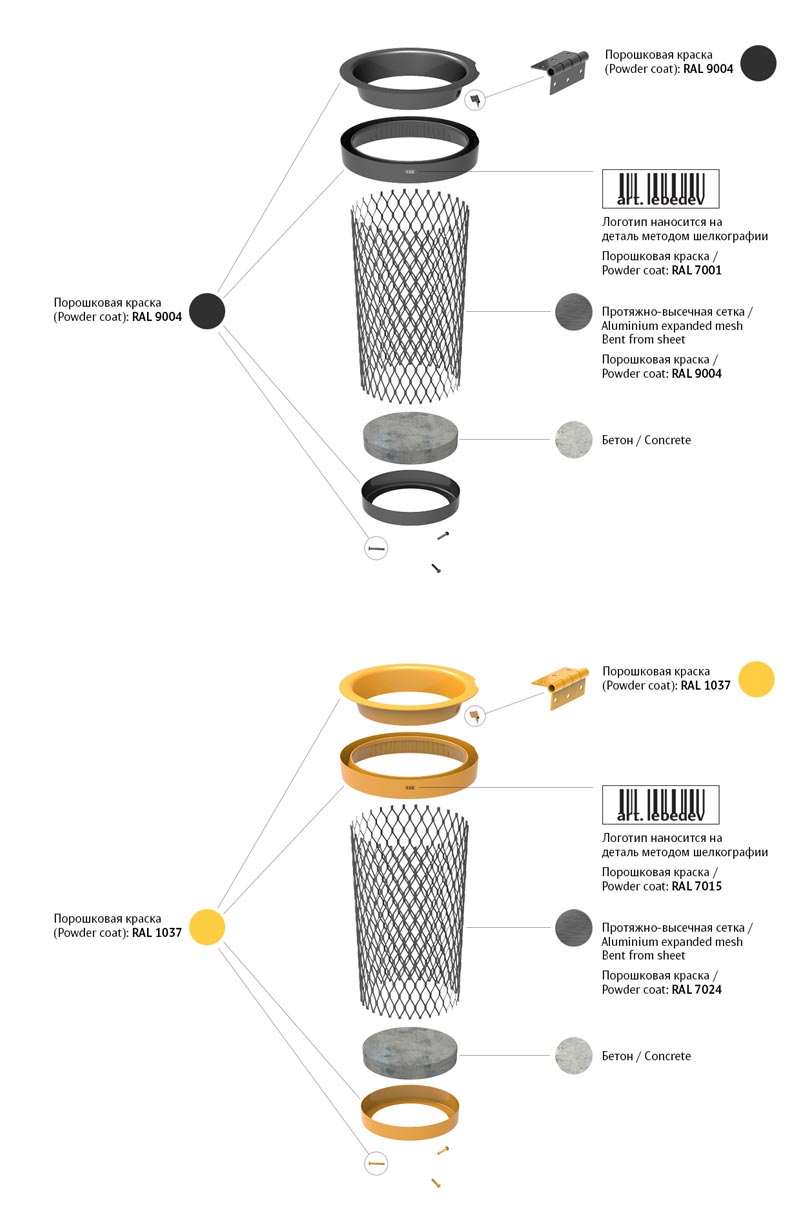

    Color and texture map.

    urnus 11 process 09
