    Task: to design the best Moscow Metro map ever.

    It took almost four years to develop this new map. We aimed to make it recognizable, yet truly novel, to be able to satisfy both passengers’ demands and design requirements. The final design is a flexible graphics system that allows creating a whole range of maps of various size and complexity.

    metromap 2012

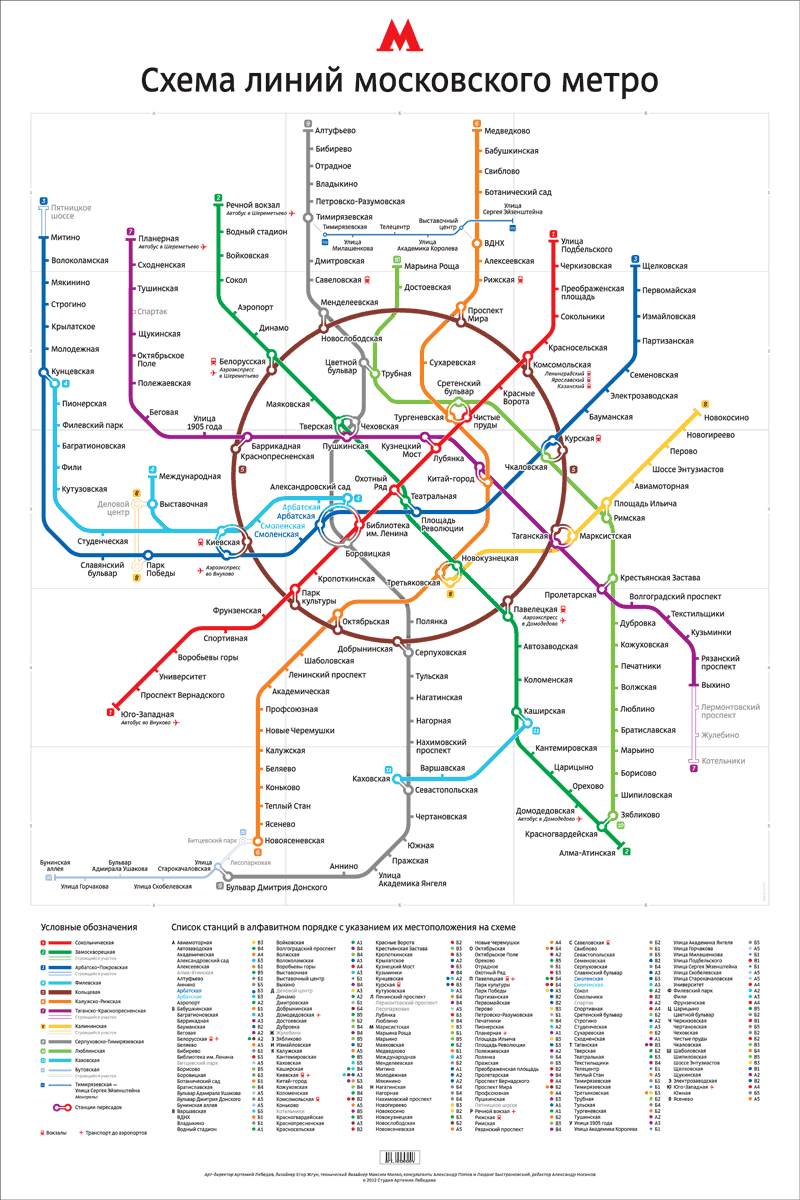

    2′×3′ poster version of the very best map of the Moscow Metro has reference grid and an alphabetical list of stations

    Release date: June 09 2010

    Cast:

    art director
    Artemy Lebedev
    designers
    Egor Zhgun
    Ludwig Bistronovsky
    consultant
    Aleksandr Popov
    editor
    Katerina Andreeva
    production manager
    Karina Ratiani

    We paid particular attention to how the stations are arranged—we employed mnemonic hints along with thoroughly balanced overall design. If one station on the map appears above the other, whether on the same metro line or at an interchange, it is actually further to the north.

    lines

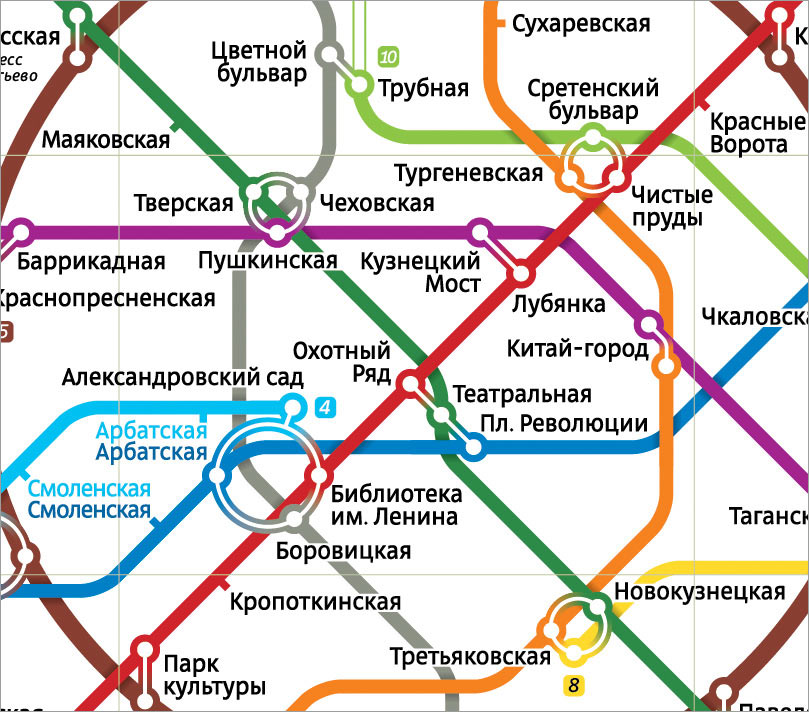

    The lines cross casting shadows

    Complex interchanges are represented by rings, which makes them more legible and rhymes with the ring line.

    For the first time in the history of the Moscow Metro the map follows the capitalization rules for Russian. Station names now use initial capitals and lowercase, whereas previously they were set in all caps.

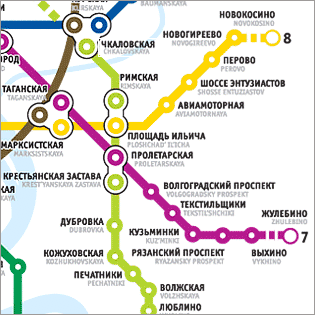

    Before

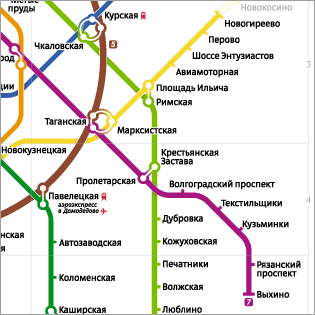

    Now



    There are several versions and formats: hard copy and digital, showing waterways and main roads and omitting them, with and without grid reference.

    mosmetromap2100a
    The whole mess for the next 100 years

    Coming soon to the metro!
