    Making of the Moscow Metro map

    Overview   Process   Real Life

    We decided to stick to the principle of arranging all the stations inside the ring as evenly as possible, with no hollow spaces or clumps. Starting to move things around.

    metro p01

    Preparing a balanced frame.

    metro p02

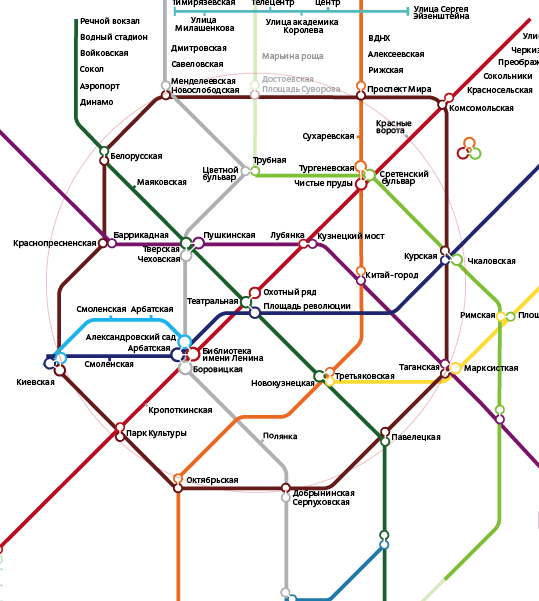

    Playing with the idea of a non-round ring, not unexampled in the history of the Moscow Metro.

    metro p03
    metro p04

    That seemed fine, but a bit too unconventional. The task was to keep the map recognizable to Muscovites.

    metro p05

    How about this for interchanges?

    metro p06

    Looking for inspiration, going for topography.

    metro p07

    The best thing about that design was that the city center found itself right in the middle of the map. Plus the Garden Ring and the Third Ring Road. But that was it, no more advantages.

    metro p08

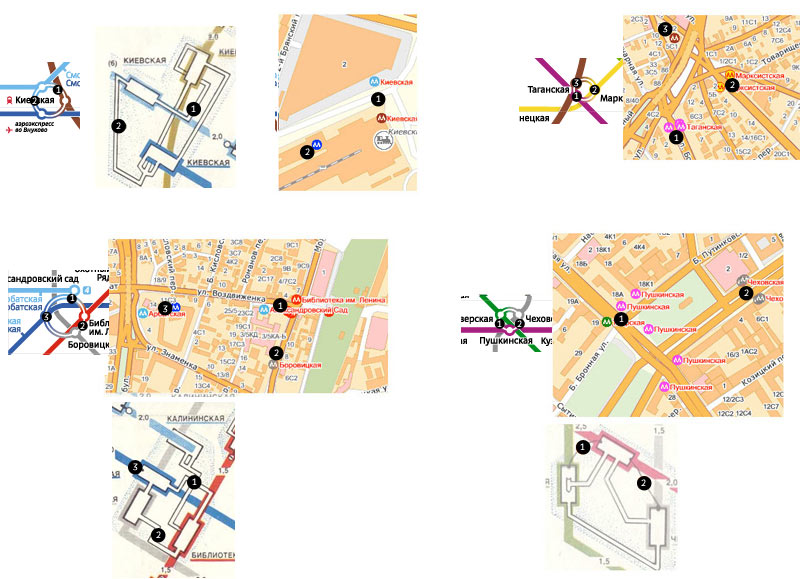

    At this point though the topographic idea led us to mnemonic hints.

    metro pgeo

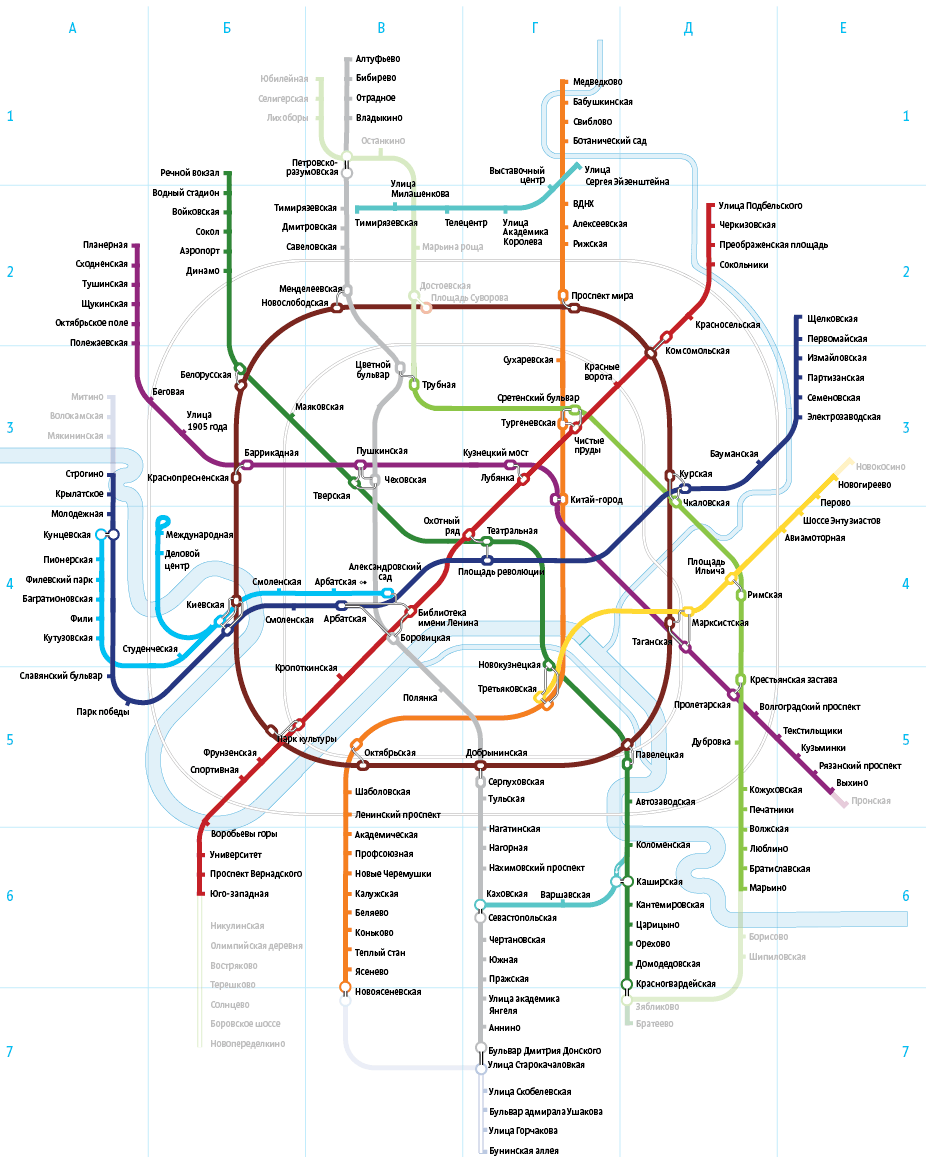

    The chromosome in the middle was too much. But then we could see the interchanges. We liked the idea, but disliked how they looked.

    metro p09

    Still wasn’t it.

    metro p10

    Then we gave birth to the idea of rings for interchange stations. It was the kind of moment like that from an episode of House, M. D., when it dawns upon him and everyone understands the enigma has been solved. “That’s it” is the essential breakthrough for every design project.

    metro p11

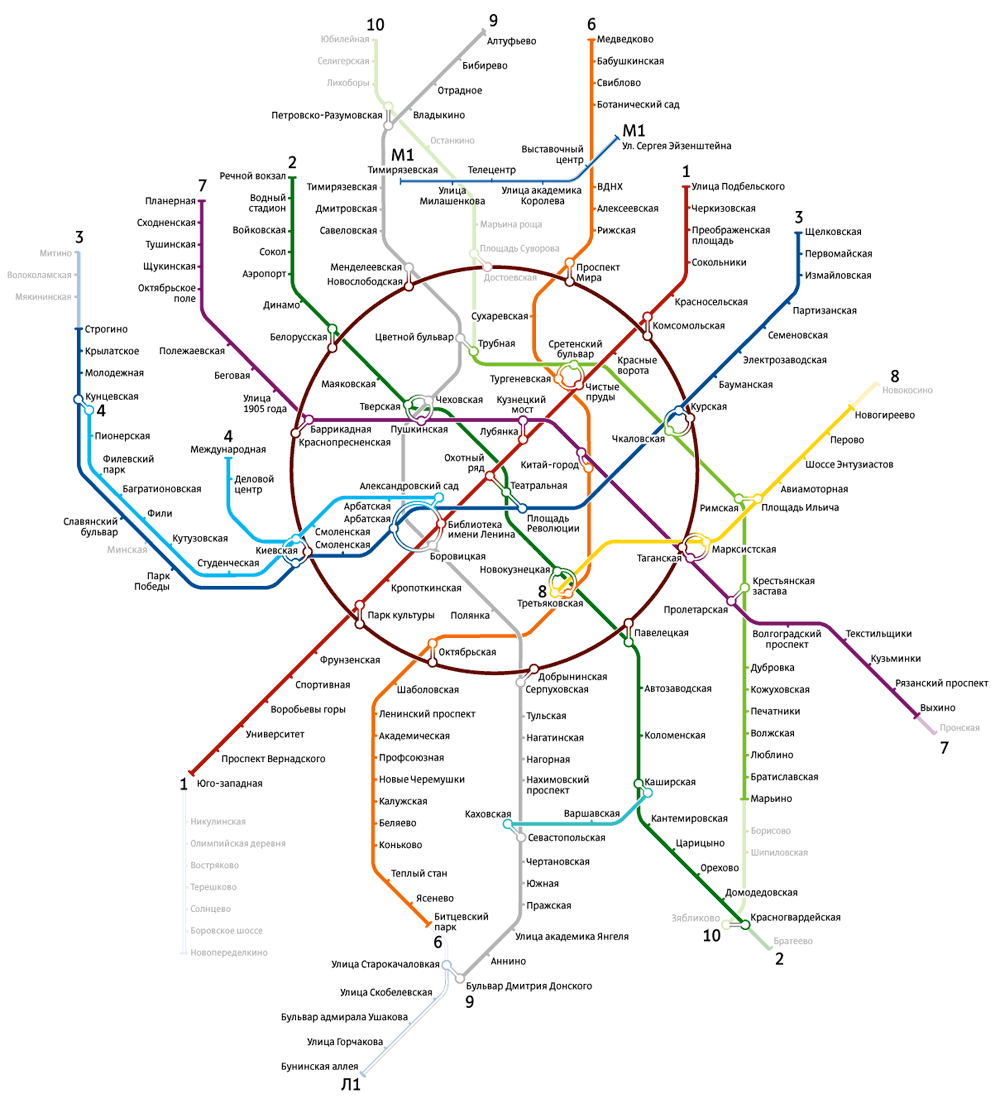

    Arranging the stations and interchanges and achieving visual balance.

    metro p12

    Incorporating ring roads, adding skyscrapers, playing around.

    metro p13
    metro p14

    Versions showing exit directions.

    metro p15

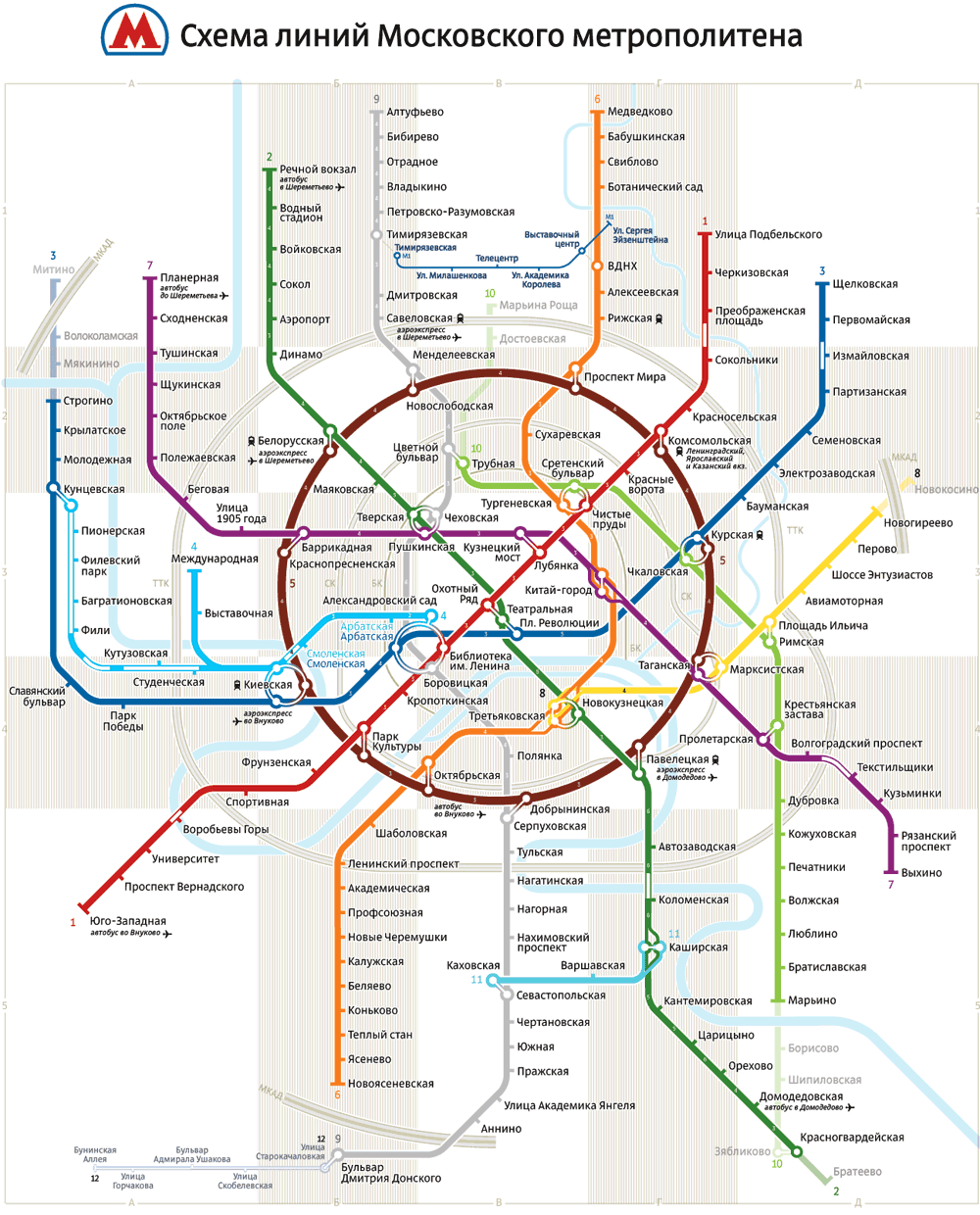

    London and Moscow? Would the British shading take root in Moscow?

    metro p16

    Or maybe red?

    metro p17

    Simple grid prefered. The map is not as complicated as that of NYC. And there are no ticket zones yet.

    metro p18

    Examining it as a whole. Rotten, too many bugs, little black things all over.

    metro p19

    Searching for a solution for the list with color marks and grid references.

    metro p20

    Struggling with one of the interchanges, Tretyakovskaya-Novokuznetskaya, the orange-yellow-green knot where the yellow line just wouldn’t look right.

    metro p21

    Would it be able to keep up with the construction to come—we had to think ahead.

    metro p22

    Almost there.

    metro p24

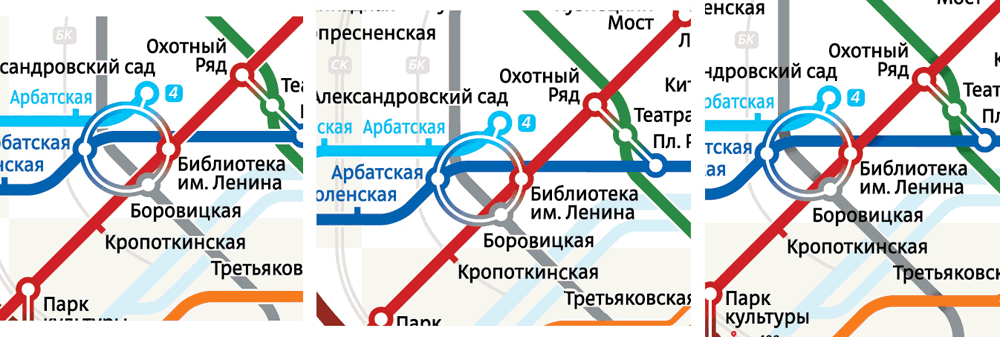

    Trying different looks for crossing lines: simple white gaps, simple overlap, simple shadows.

    metro p25
