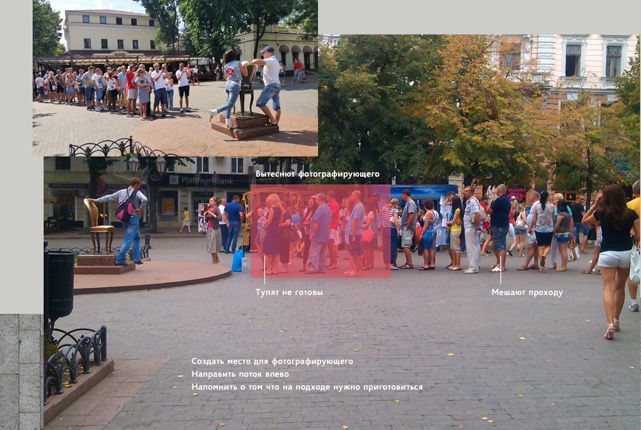

There is a problem on Deribasovskaya Ulitsa in Odessa near the Ilf and Petrov monument. And we need to solve it with design.

odessa guide process 01

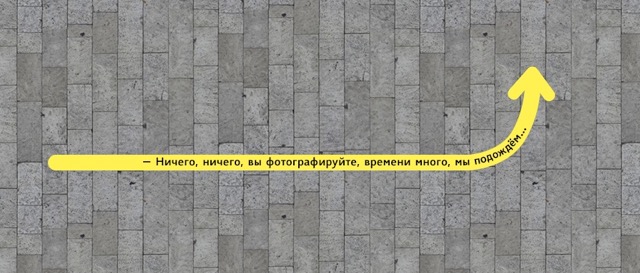

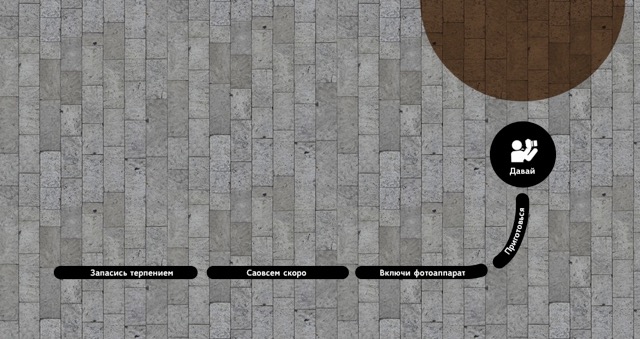

Trying to solve the problem by using a guide line with comments.

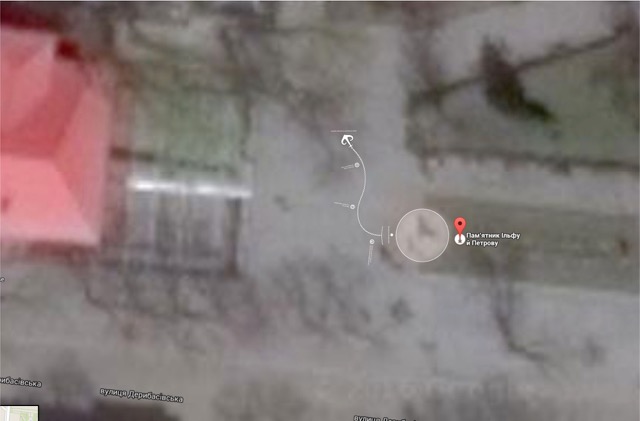

Preparing sketches of ideas.

odessa guide process 02
odessa guide process 03
odessa guide process 04

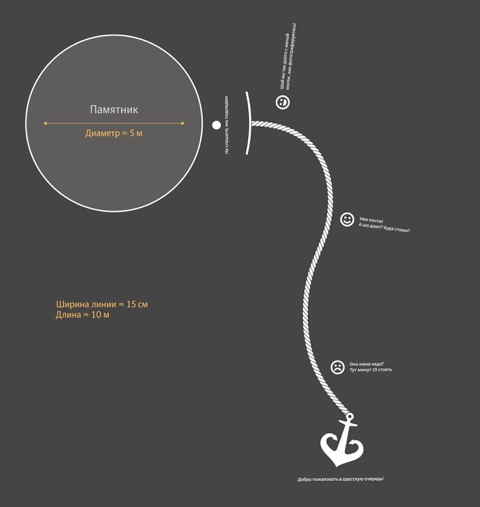

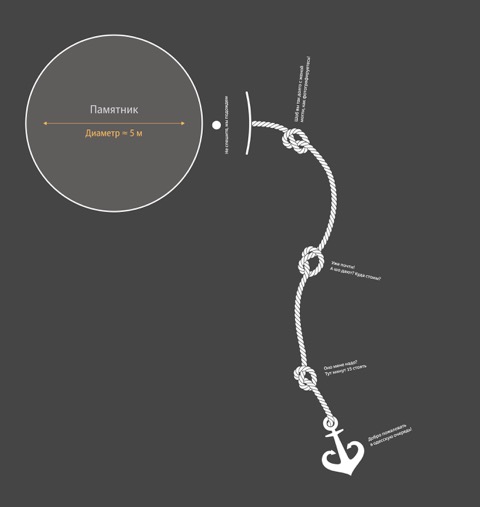

Getting the art director’s approval of the overall approach.

odessa guide process 05

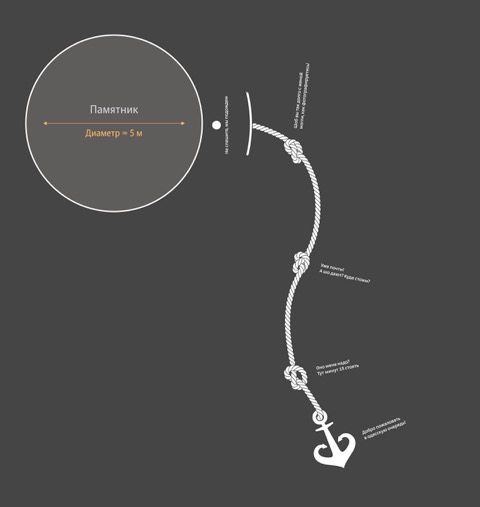

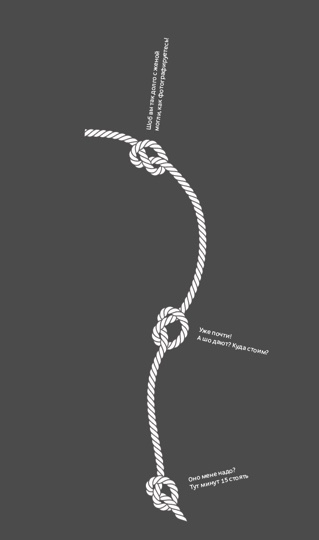

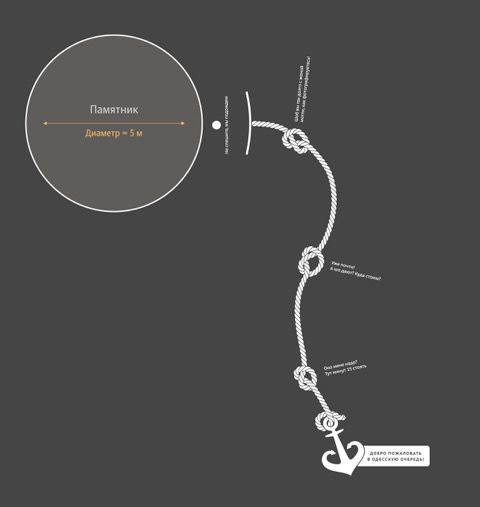

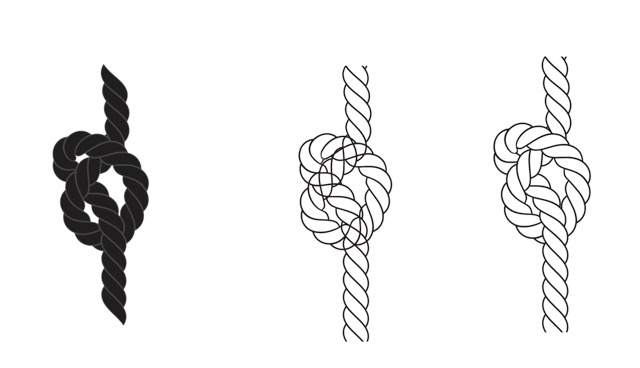

Making corrections.

odessa guide process 06
odessa guide process 07
odessa guide process 08
odessa guide process 09
odessa guide process 10

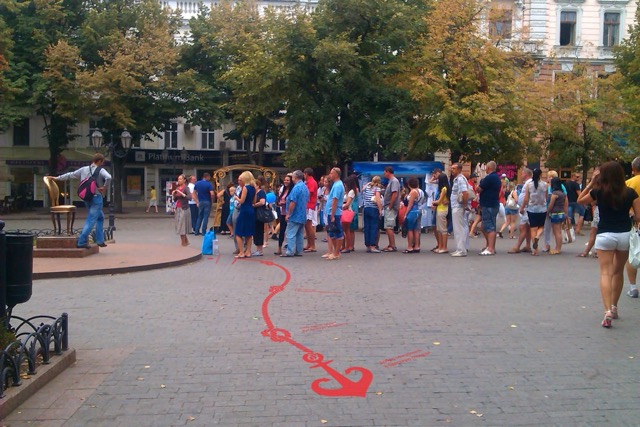

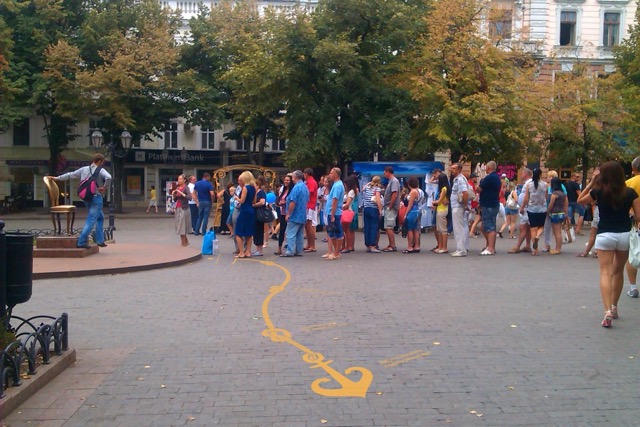

Trying different colors.

odessa guide process 11
odessa guide process 12

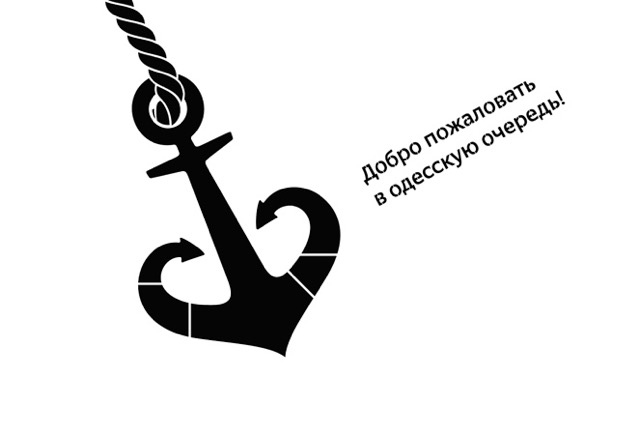

At the end deciding to go with white paint. Preparing a stencil for the subcontractor.

odessa guide process 13
odessa guide process 14

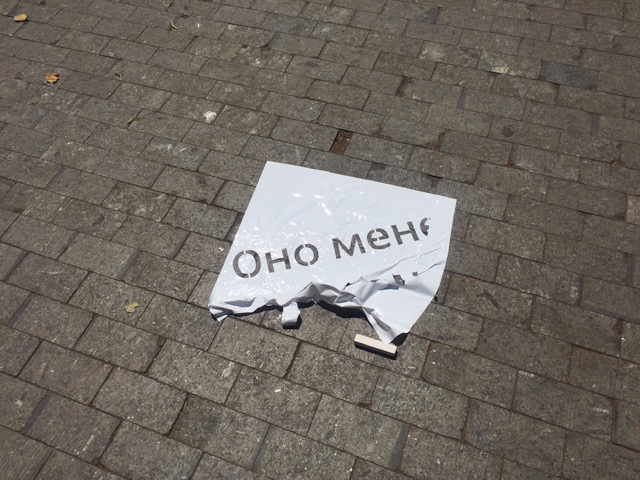

Making a test application. Realizing that film, the cheapest option, doesn’t work as sheet fragments are impossible to align together.

odessa guide process 15

The second approach, now using 4-mm plywood.

The structure is rather unwieldy, the material is brittle, plus we are told not to make connections less than 3 cm wide and leave margins of no less than 5-6 cm.

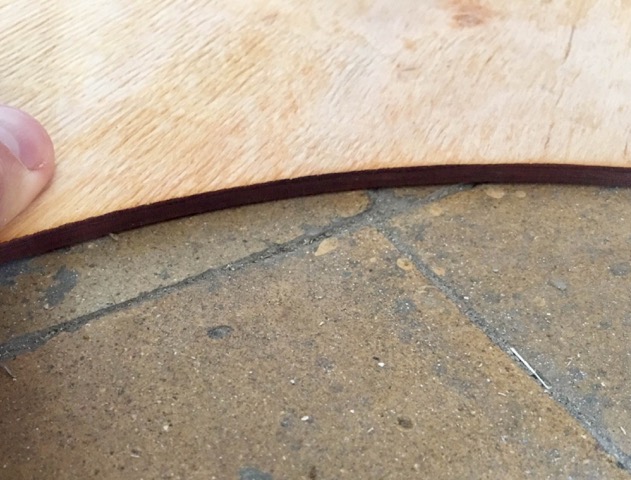

The material bends and covers the ground nicely, but still causes problems at tile seams. Even the tiniest gap is enough to cause paint bleed.

Besides, plywood itself has areas of unequal width. There aren’t many, but they also create gaps. We need to carefully polish them out.

odessa guide process 17
odessa guide process 18

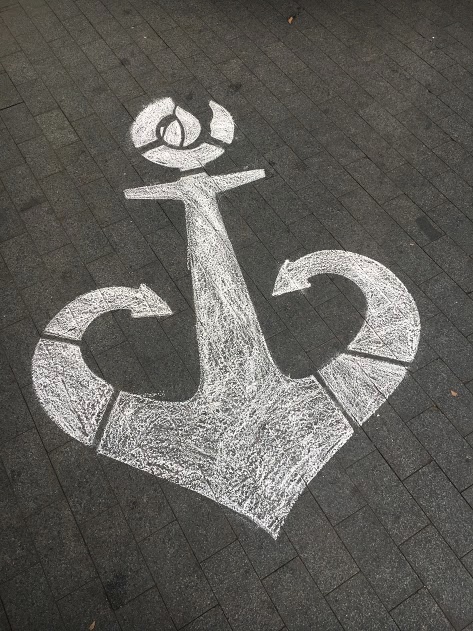

At the next step we make the final choice of the material, it’s going to be 6-mm plywood.

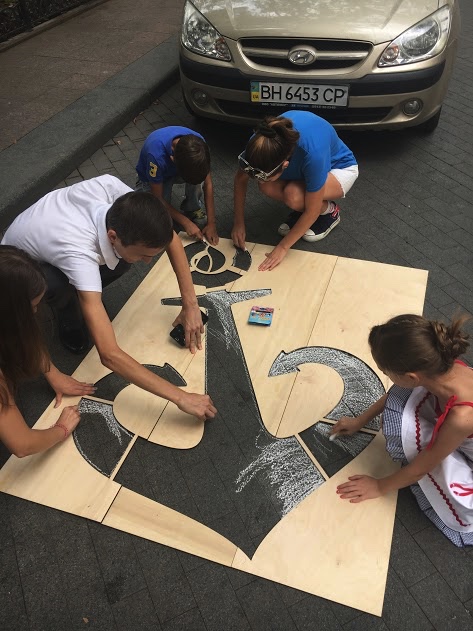

odessa guide process 19
odessa guide process 20
odessa guide process 21
